TEXA radar and camera calibration solutions

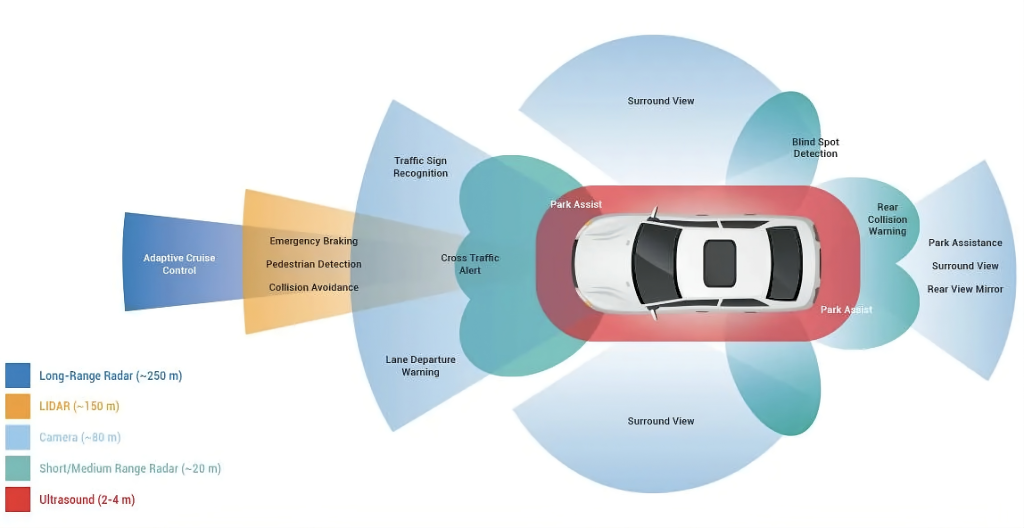

ADAS systems (Advanced Driver Assistance Systems) are designed to ensure driving safety and comfort and are becoming increasingly common in the latest-generation vehicles, even in the utility segment.
Functions include autonomous emergency braking, assisted speed control, lane departure, and pedestrian and traffic sign recognition to name just a few.
The ability to provide professional services for these systems is no longer an option but a practical necessity if you want to keep pace with the times and offer your customers top-class assistance.

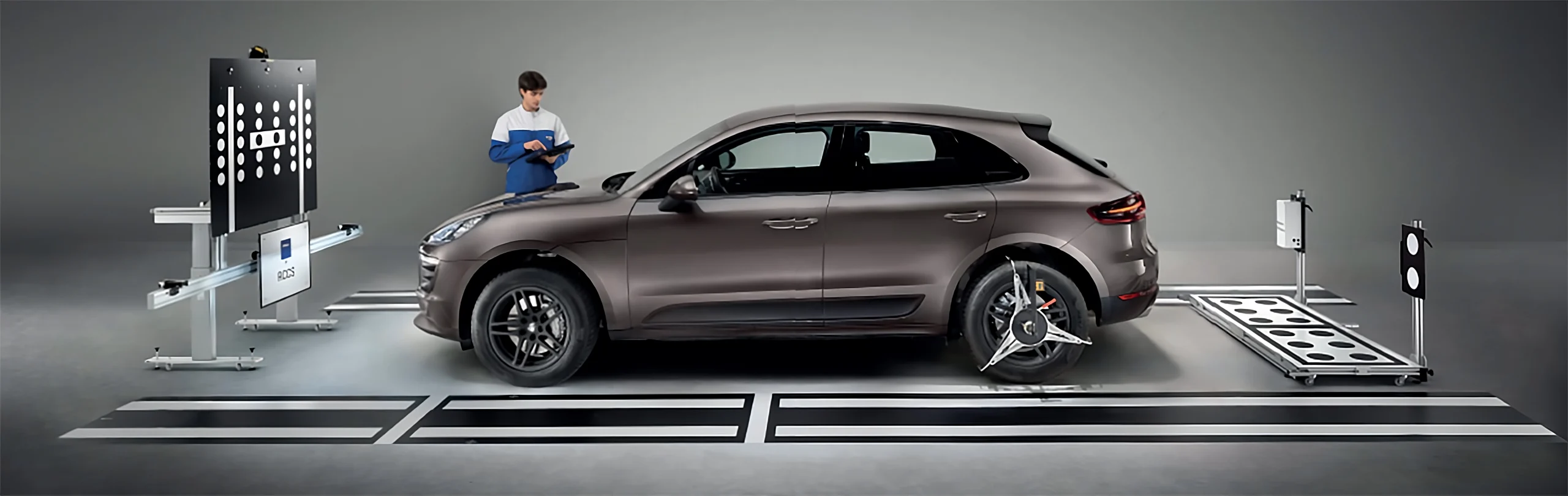

To help vehicle repair professionals work on these sophisticated active safety systems, TEXA has developed a complete range of modular, multi-brand tools that satisfy the needs of glass replacement specialists, body shops, multi-brand garages, and tire fitters.
The range includes:

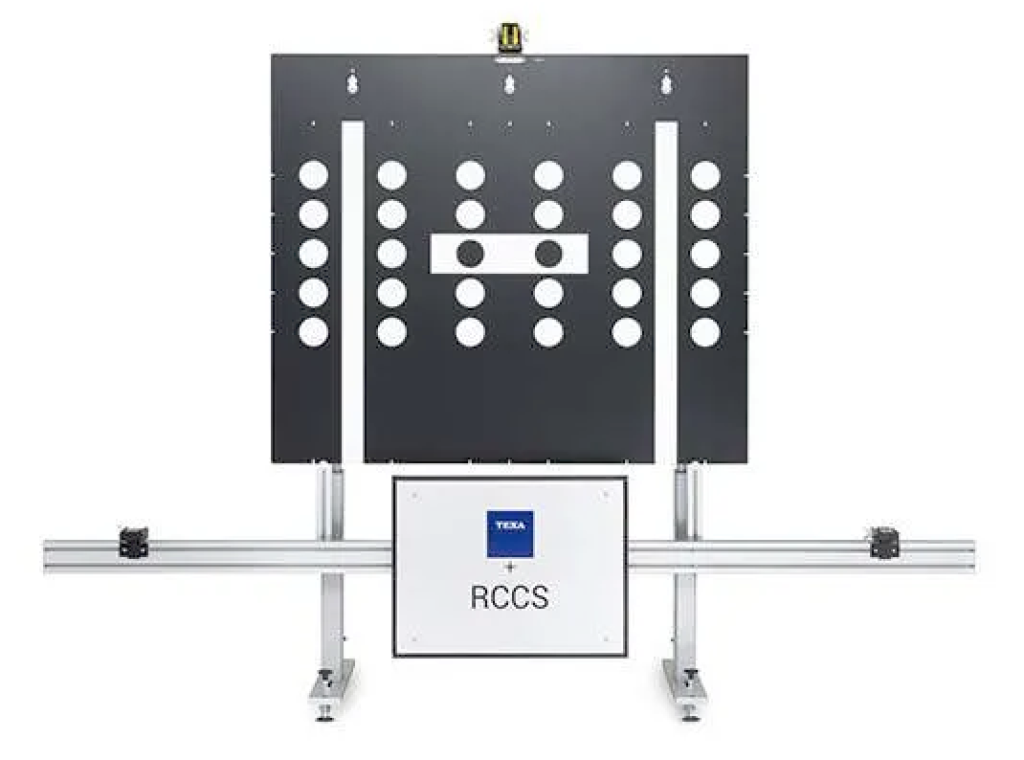

RCCS 2: a simple, safe and professional ADAS Calibration System
RCCS 2 allows you to work independently in all phases of repair and even check ride height on cars and light commercials to offer your customers a simple, safe and highly professional service.
The RCCS is modular since it is compatible with all TEXA panels, with the possibility to choose only the required panels, based on the operator’s needs.
The RCCS is versatile, as it can be used in combination with the other specific solutions for the calibration of radars and rear cameras, therefore creating a complete solution that allows you to operate on electronic driver assistance systems, such as:
RCCS 2 is a complete, professional solution for all kinds of radar and camera calibration.
The system comprises robust main support with electrically powered height adjustment and a practical knob at the rear for adjustment of tilt with respect to the vehicle.
The adjustment bar is equipped with two distance meters and a sliding
reflector plate with a central laser for front radar pointing. An additional laser level at the top of the structure locates the center of the vehicle simply by pointing at its front badge. This advanced technology allows the system to be aligned easily, accurately, and safely with respect to the vehicle and the floor. The RCCS 2 system is mounted on castor wheels for easy movement around the workshop.
RCCS 2’s high-performance optical alignment lets you perform all kinds of calibration work on radar and camera systems quickly and accurately.
The vehicle is aligned by two distance-meter lasers mounted on the structure’s cross-beam aimed at two practical pointing bands. It is important to remember that correct vehicle alignment must be checked before all calibration work to avoid the risk of inaccurate settings, reduced safety, and customer dissatisfaction.
Laser LevelAdjustment Knob
Precision panel adjustment knobDistance meter
Distance MeterFront panel
Front Radar Pointing LaserMAts
VAG 360° Camera Calibration MatsDoppler
Doppler SimulatorACS Device
ACS DeviceTire Clamp
Latest generation laser technology
These new distance meters are TEXA’s latest solution for guaranteeing the high level of professionalism and precision now demanded by the world’s garages.
Detail of the sliding reflector plate and central laser for front radar pointing.
IR Calibration Target
This extremely useful accessory permits rapid and extremely accurate calibration of the vehicle’s infrared camera, a device that is essential to road safety as it helps drivers identify persons or animals ahead in the dark.
Positioned in front of the vehicle, the IR Calibration Target simulates the presence of a warm body.

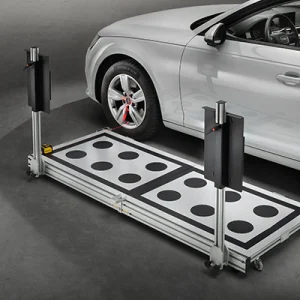

ACS (All Around Calibration System)
The ACS system is particularly useful as it permits the calibration of 360° cameras and Doppler devices* on vehicles of the VAG Group (AUDI, SEAT, SKODA, VOLKSWAGEN, AND LAMBORGHINI).
The ACS system comprises an aluminum structure that holds two horizontal panels and practical, vertical supports for two additional magnetic plates. The base incorporates three holders for the laser distance meters needed to verify the correct alignment of the structure with respect to the vehicle.
This TEXA solution is extremely practical and comes with wheels for rapid, easy movement. This is an important characteristic as it allows a single operator to perform all operations quickly and easily, saving resources and time for other jobs.

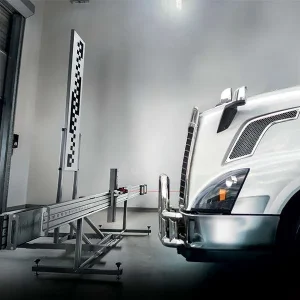

ADAS TRUCK Kit
Some truck and commercial vehicle manufacturers require specific equipment for properly calibrating driver assistance systems, including cameras, radars and sensors that govern the Adaptive Cruise Control.
TEXA offers an adjustment system that includes a measuring bar and target - dedicated to cameras and laser devices - that are essential for the correct alignment and calibration of ADAS systems.
Furthermore, the IDC5 TRUCK software guides the operator step by step in the case of vehicles that carry out self-calibration through on-road adaptation procedures.
