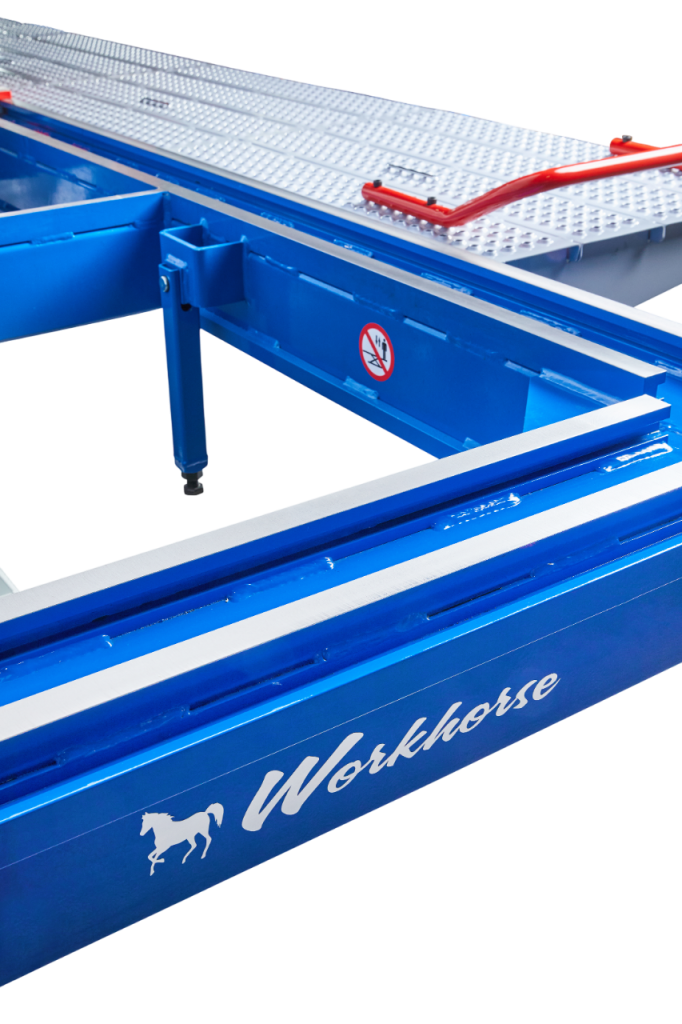

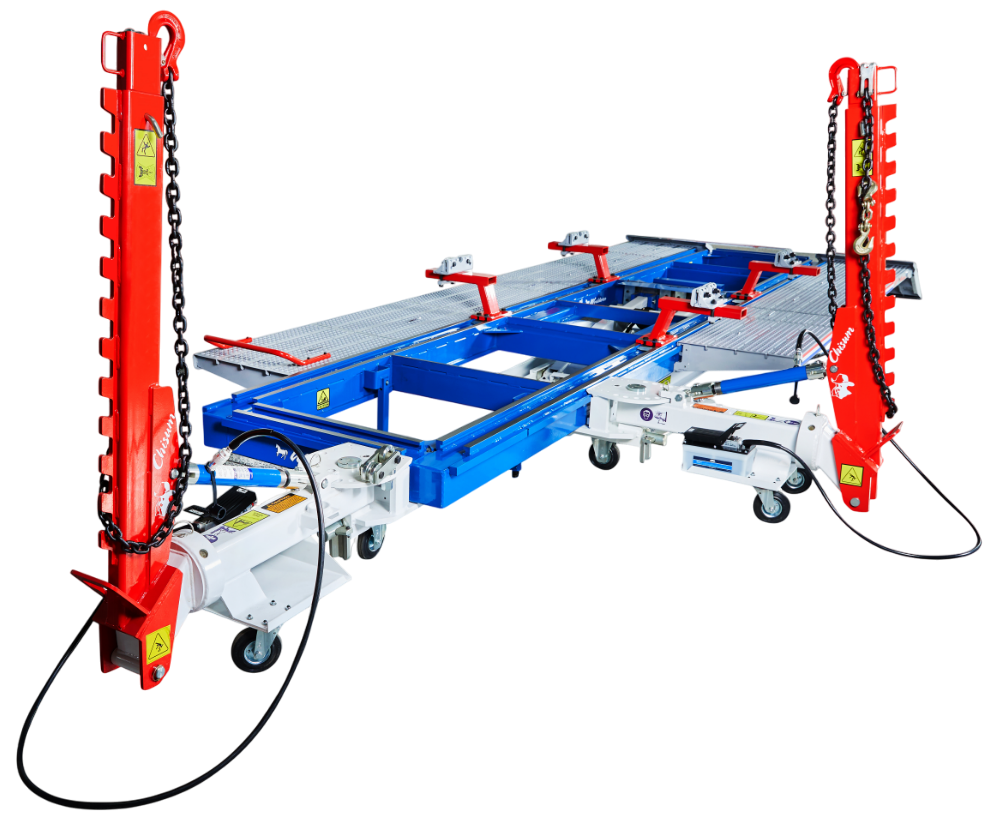

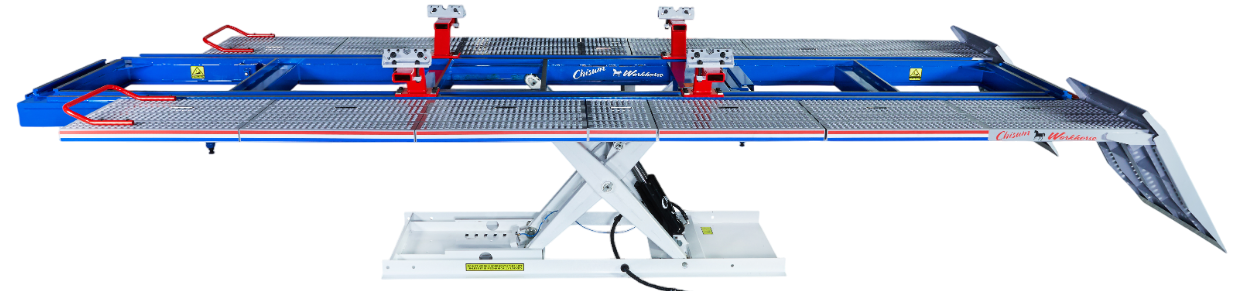

Workhorse
FRAME MACHINE - KEY FEATURES
- 10-ton pulling power
- 10,200 lb. lift capacity

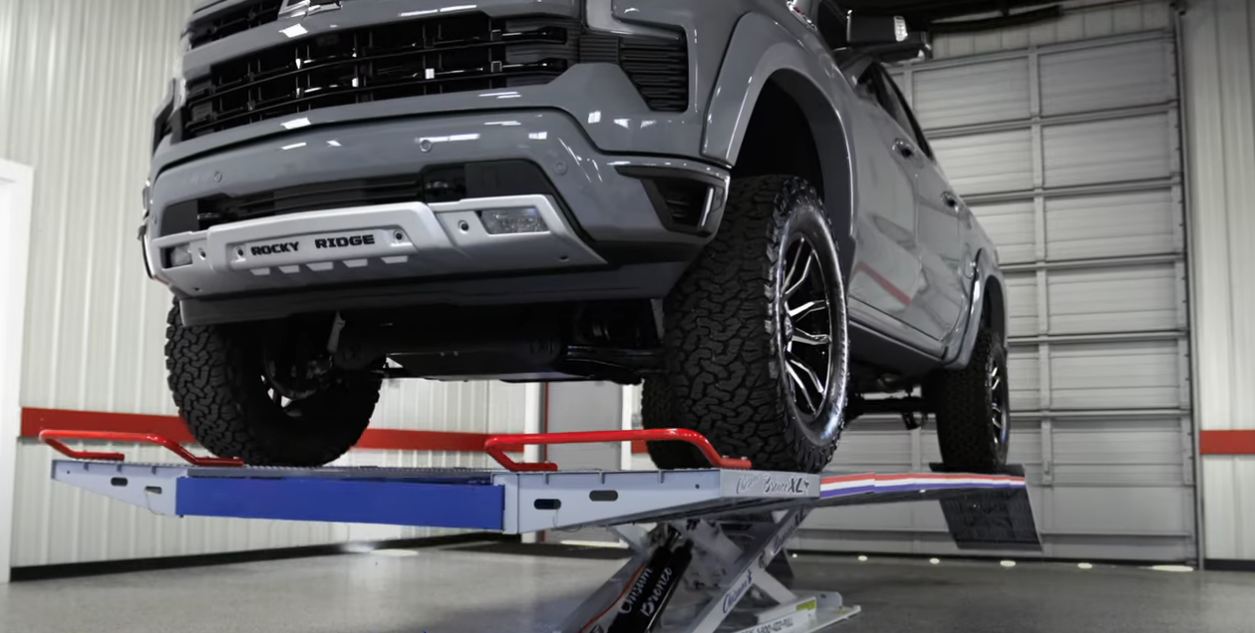

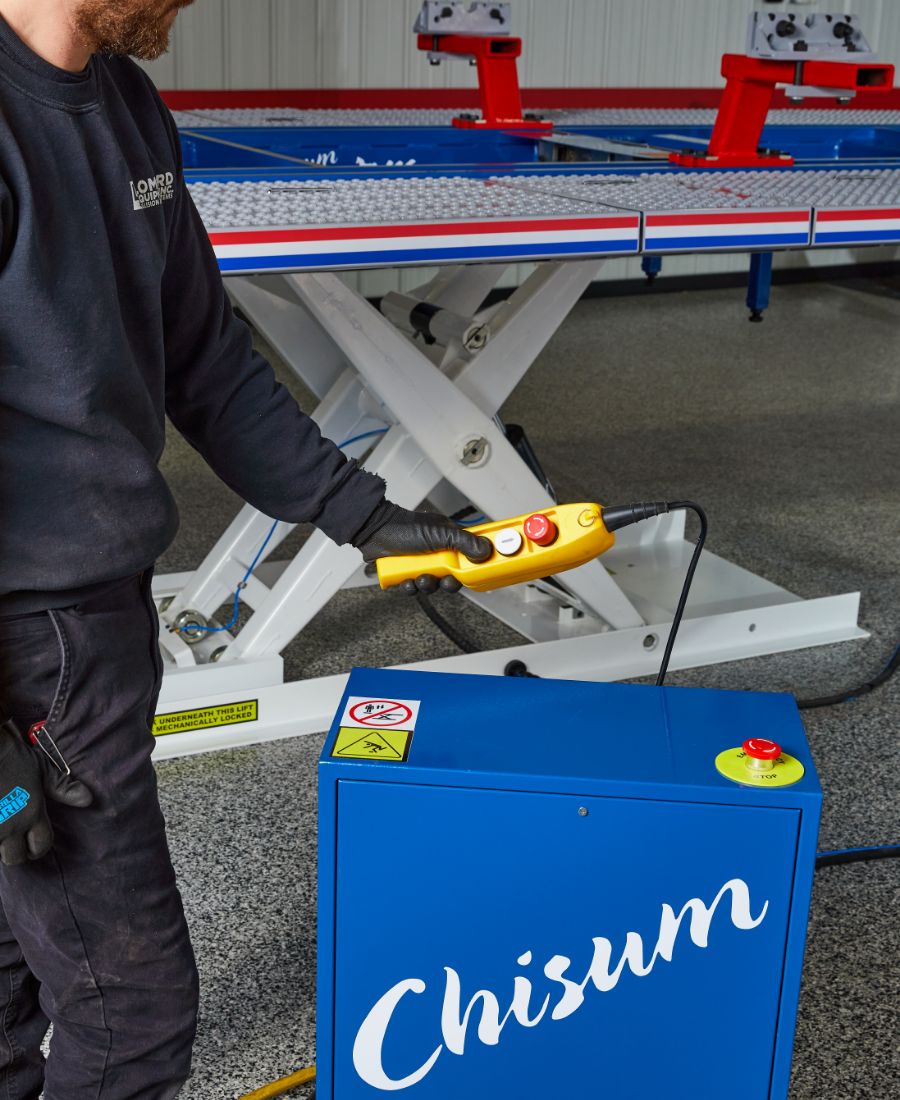

- Electric hydraulic lift system
- Full Frame Anchoring Available
- OTC air hydraulic pump
- 16”H drive-on, 48”H max working
- Standard 7’ 8” wide ramps

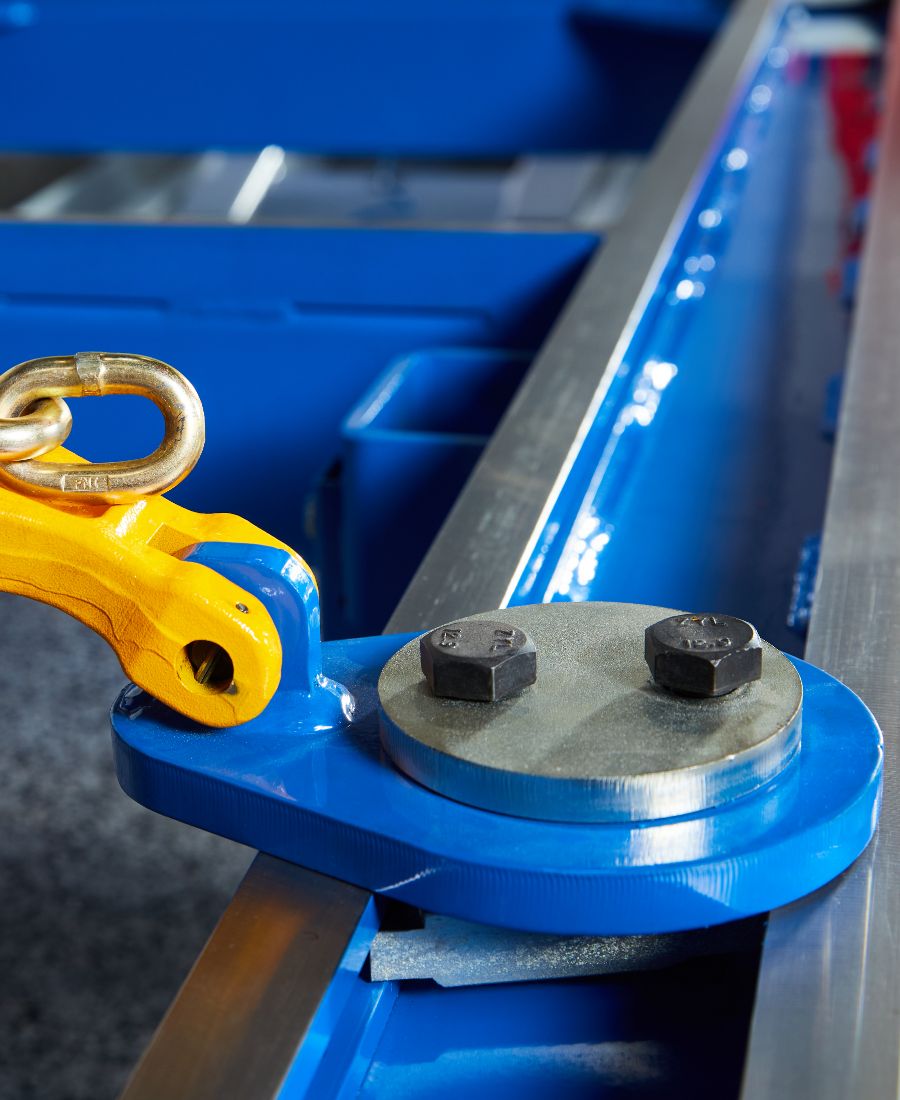

- Standard 4 point anchoring
- Bench lengths up to 20 ft
- Precision-milled surface
- Protected hydraulic lines

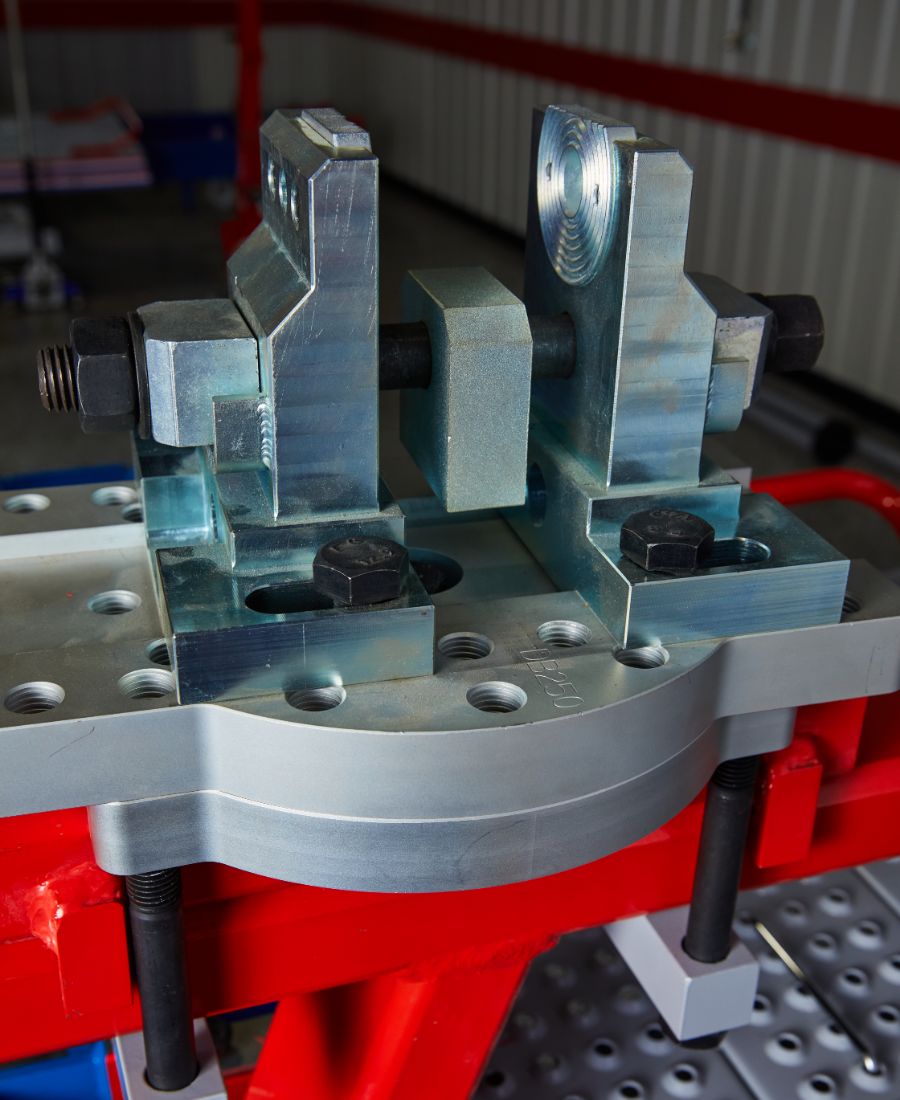

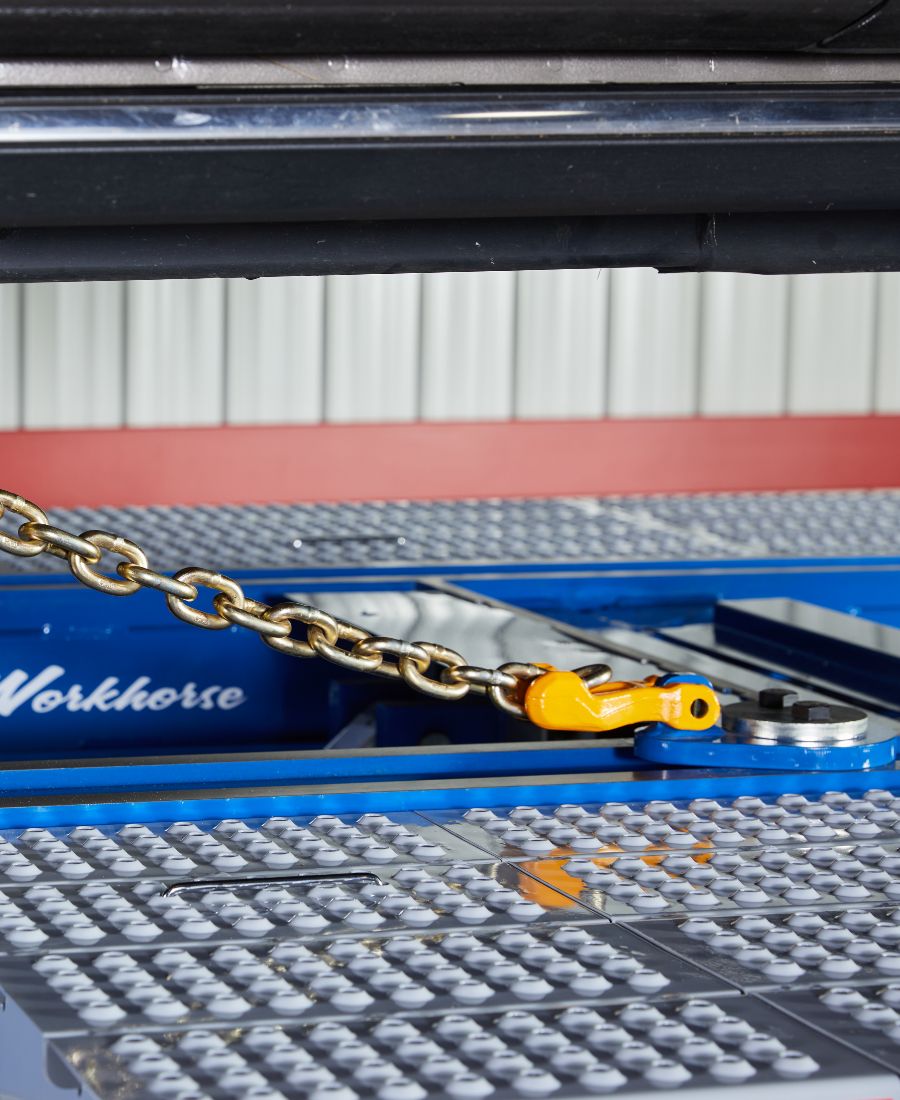

- Quick Tie Down
- Durable powder-coated finish

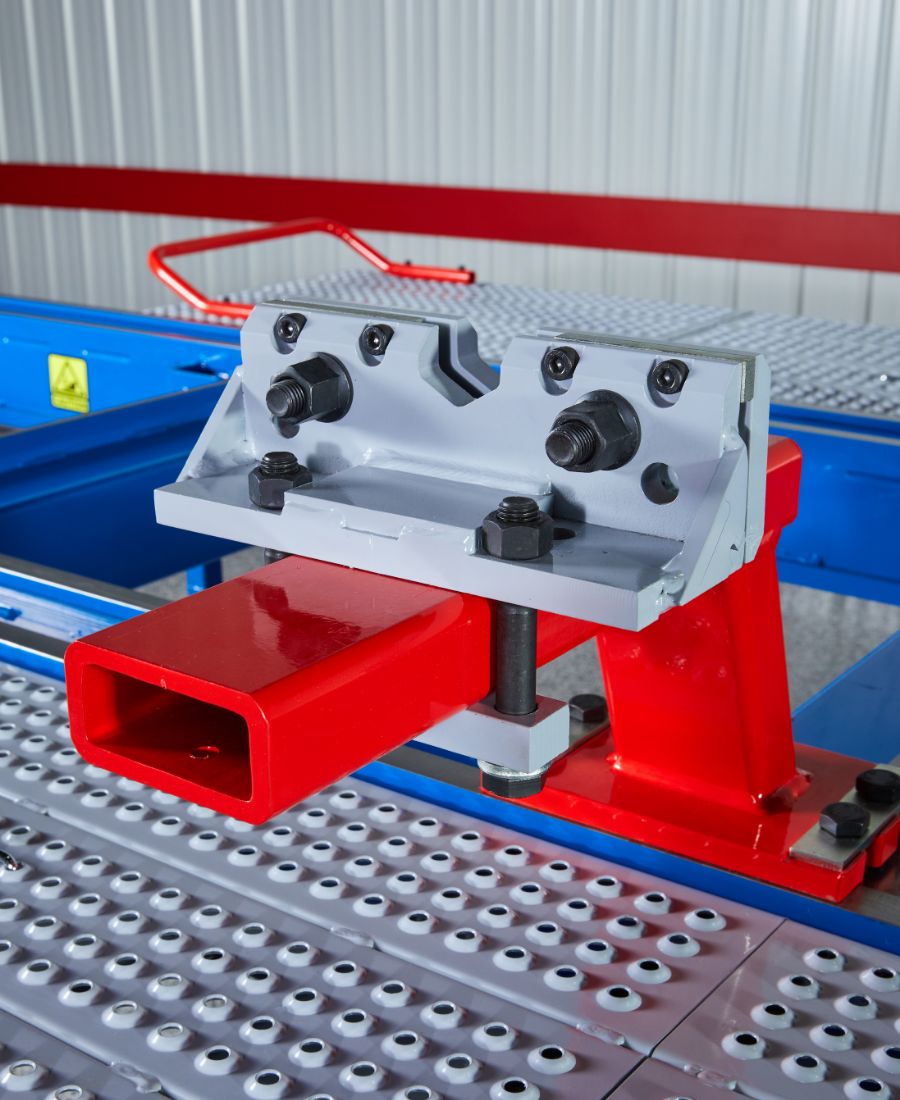

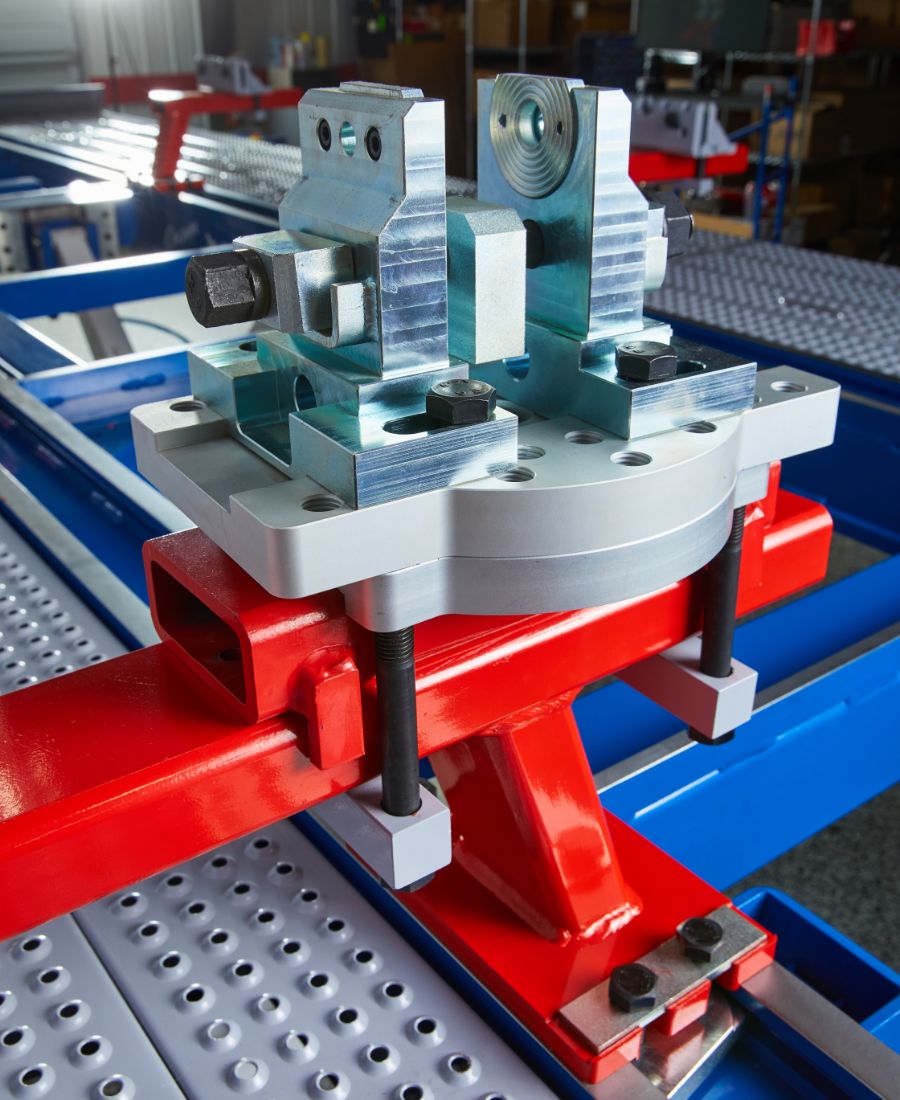

- Heavy-duty mounting arms & towers

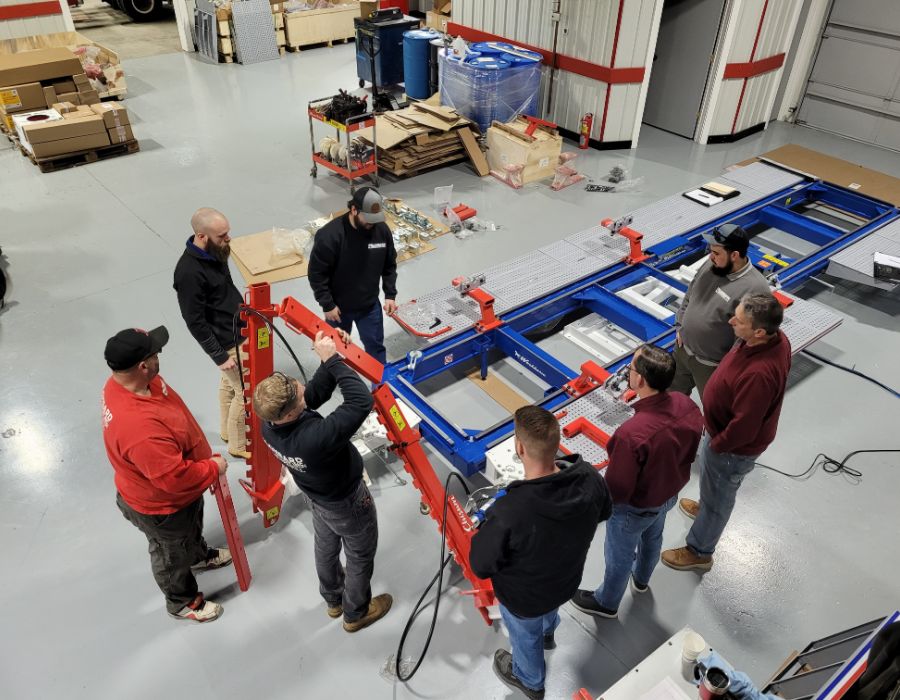

- Includes installation and training

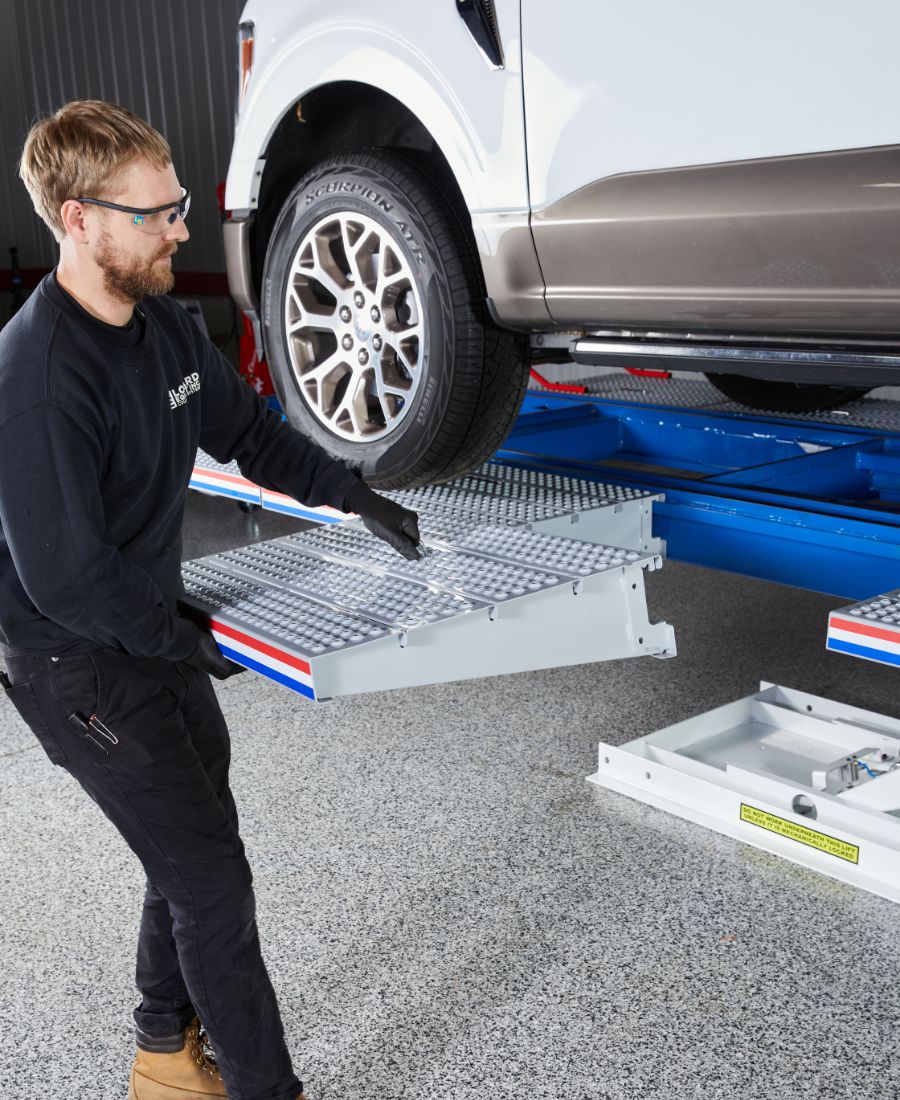

- 14 Lightweight removable treadways
WORKHORSE SAPCESAVER SPECIFICATIONS
Length
16’ 5” Bench
19’ 5” Bench with approach ramps
23’ 5” Bench with approach ramp + 1 tower at front
24’ 5” Bench with 2 towers (front + rear)
Width
7’ 8” Bench including treadways (left + right)
9’ 8” Bench with 1 tower
11’ 8” Bench with 2 towers (one on each side)
Working Height
16” Drive-on minimum
48” Working maximum
Pulling Power
10 tons of pulling force
Lift Capacity
10,200 lbs.
Lift Hydraulics
Electric Hydraulic
Pulling Hydraulics
Air/ hydraulic pumps
The Ultimate Solution for Every Collision Repair Shop
Are You Struggling with Slow, Inaccurate Frame Repairs That Cost You Time and Money?
Every day, you’re tasked with getting vehicles back on the road quickly and accurately. Whether you’re handling unibody repairs, full-frame jobs, or everything in between, you know how frustrating it is when your frame machine isn’t up to the challenge.
That’s where the Chisum Workhorse comes in. Designed to help auto body shops like yours cut repair times, eliminate guesswork, and increase throughput, the Chisum Workhorse ensures every repair is done right the first time, every time.
Get Repairs Done Faster Without Sacrificing Quality
You’ve probably experienced the frustration of long repair times and delays in your workflow. Whether it’s a small pull or a full-frame alignment, waiting for equipment to catch up can create downtime, bottlenecks, and unhappy customers.
Faster setup times | Powerful pulling force | Efficient workflow
Every feature of the Chisum Workhorse is built for speed and precision, so you can reduce turnaround times and increase your shop’s productivity.
Built to Last and Handle Any Repair Job
In a collision repair shop, equipment needs to stand the test of time. When your frame machine is constantly breaking down or failing to deliver, it becomes a costly burden. The Chisum Workhorse is engineered to withstand the rigors of daily repairs, ensuring it will be a reliable part of your shop for years to come.
- Rugged and reliable
- Versatile for all vehicle types
- Long-term value
You don’t need equipment that lets you down when you need it the most. The Chisum Workhorse ensures you’re always ready to tackle the next job.
Accuracy You Can Count On: Avoid Mistakes & Rework
There’s no room for error when it comes to collision repairs. One misaligned frame or a small mistake can cost you both time and money. How many times have you had to redo a job because the equipment didn’t get the alignment right? With the Chisum Workhorse, you’ll never have to worry about poor accuracy again.
Laser-precise pulls | True, milled surface | No more guesswork
By choosing the Chisum Workhorse, you’ll avoid the mistakes that can delay your projects and damage your reputation.
Easy to Use: Streamline Your Shop’s Workflow
The last thing you need in your shop is complex equipment that’s difficult to use or maintain. The Chisum Workhorse is designed with ease of use in mind, ensuring that your team can operate it with minimal training and get right to work.
- User-friendly controls
- Low maintenance
- Maximized efficiency
If you’re tired of wasting time, dealing with inaccurate repairs, and struggling with unreliable equipment, it’s time to make the switch to the Chisum Workhorse.
