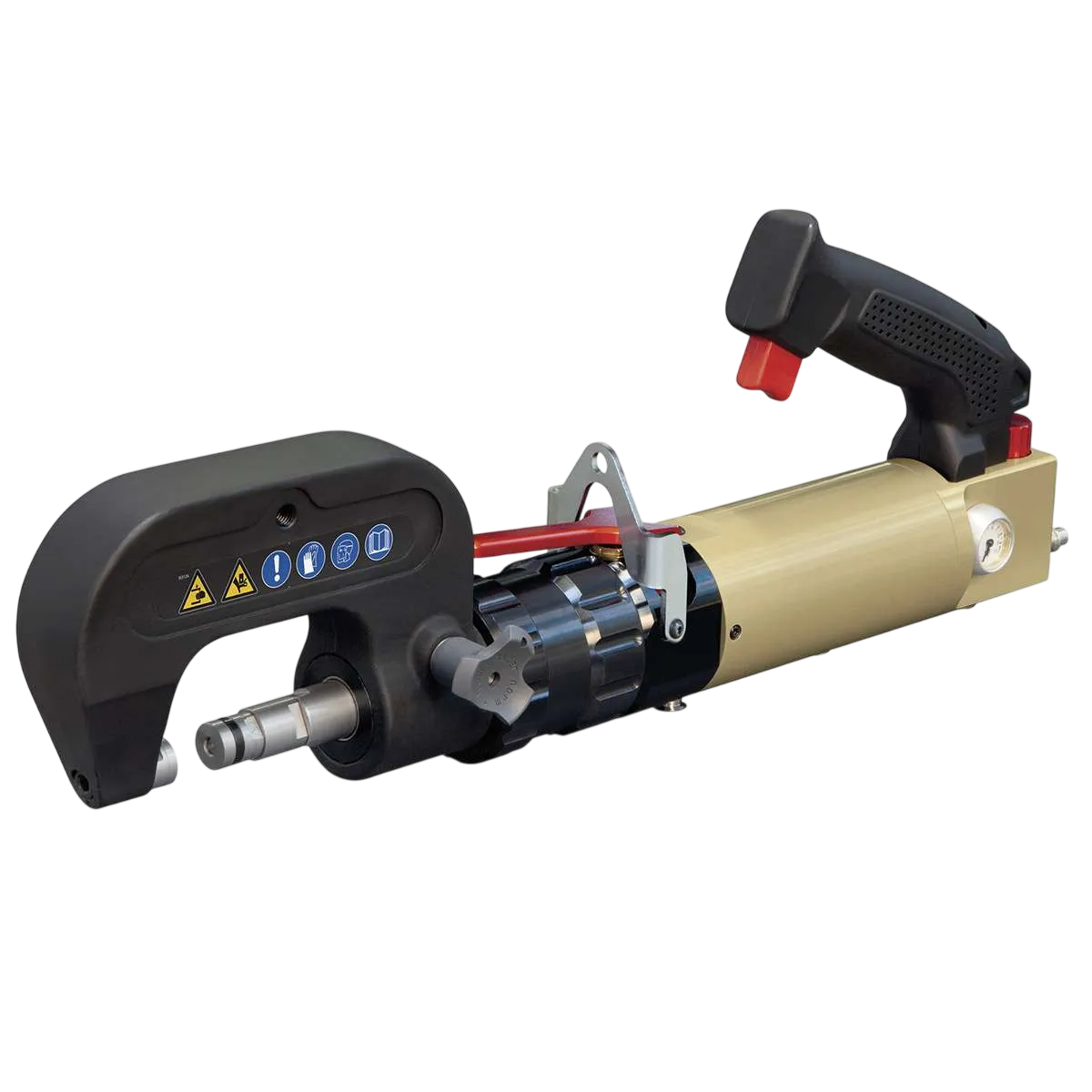

GYSPRESS 10T
Automatic air-powered riveter

Steel Arm

360 degree swivel quick change arms. HR110 Arm is standard, three additional arms available

 Discharge lever

Discharge/Release lever

 Command Trigger

Ergonomic handle and command trigger aids in ease of use

 Pressure Control

Pressure Control



 Closed air

Closed air/hydraulic system, up to 10 tons of pressure, adjustable force & integrated pressure gauge


 Arm Change

Fast and Easy Arm Change with Quick Release Locking Pin
Play Video

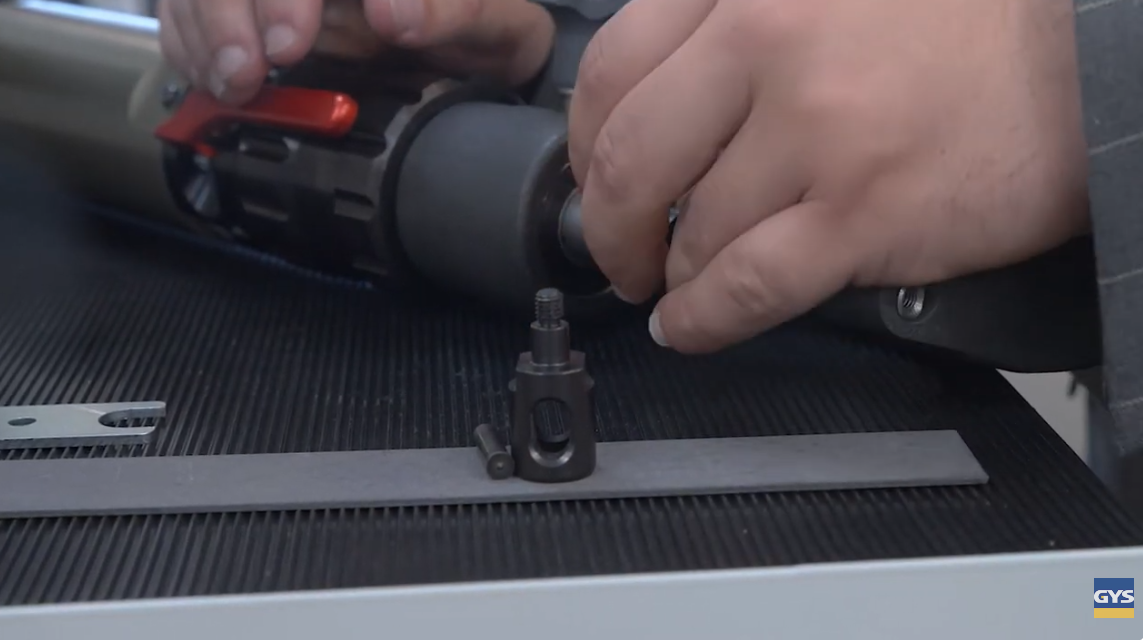

Self Piercing Rivets

Self Piercing

Flow Form Rivets

flow form

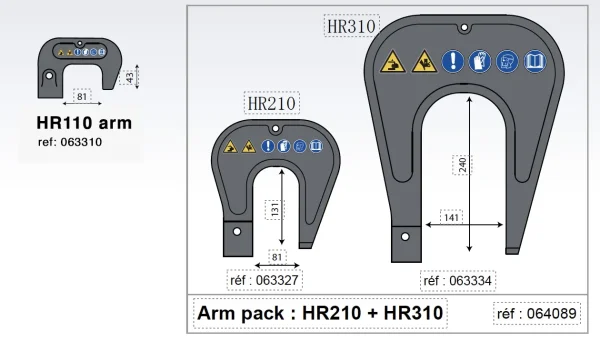

Rivet-arms-1

PRODUCT DETAILS

Automatic air-powered riveter specially designed to perform common riveting tasks in modern body shops including self-piercing rivets and standard flow form rivets.

ERGONOMIC AND EFFICIENT

  • Maximum pressure of 10 tons with integrated pressure gauge (Psi).
  • Fast and easy arm change.
  • C-arm swivels 360° around the riveting machine axle.
  • Selection of arms available for difficult access situations.
  • Easy to use ergonomic handle and trigger.
  • Magnetic die makes rivet positioning easy.

ACCURATE SETTINGS

The user can manually adjust the actuator speed and rivet pressure according to the metal used to avoid panel distortion.

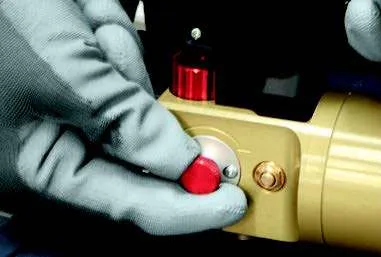

Speed Control
Speed Control
pressure control
Pressure control: 0 > 95 Psi

Delivered With:

  • 2 die keys
  • 1 strap
  • 1 arm HR110
  • 1 handle for arm
  • 1 box of rivets
GYSPRESS-10T-Riveting-case

ALSO INCLUDES:

1 standard die kit for extraction and rivet positioning and center punch :

  • self-piercing (Ø 3.3 et 5.3 mm)
  • flow-form (Ø 5.6 mm)
GYSPRESS-10T-Dies
GYS Blind Ext

GYSPRESS Blind Rivet Adapter (optional)

The blind rivet adapter is compatible with both the GYSPRESS riveters. Its tensile force is 24 kN. It allows the setting of blind rivets with diameters from 4.0 to 7.8 mm for aluminum and 4.0 to 6.4 mm for steel.

ADVANTAGES:

  • 360° rotation for greater accessibility.
  • Flexible at 90°, the head can be used in difficult areas of access.
  • Versatile thanks to its different diameter nozzles.
  • Robust due to its steel structure.
