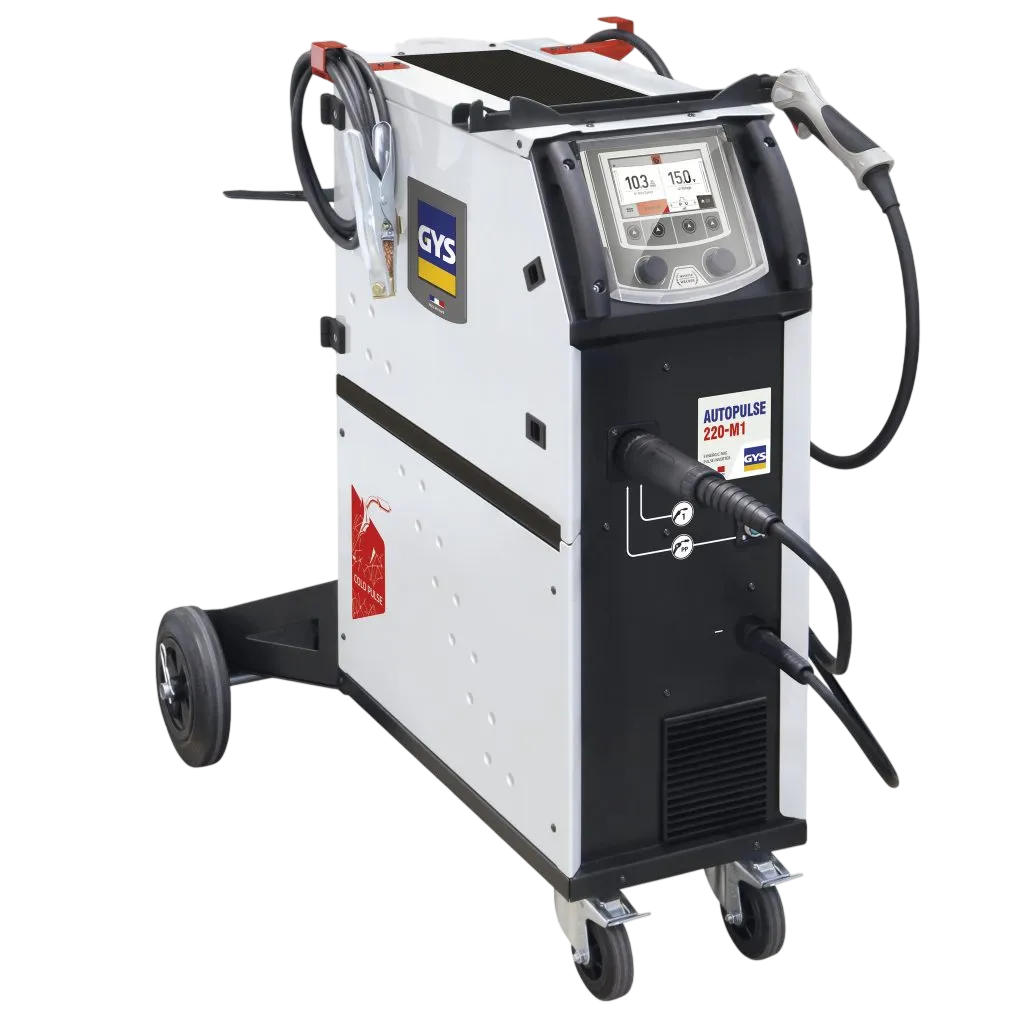

AUTOPULSE 220-M1
Single Phase MIG-MAG

Large screen

Large color LCD screen with protective shield designed for body shops

bottle holder

Integrated welding gas bottle holder

2 wheel drive system

2 wheel drive system with 2 active drive rolls, suitable for 200mm and 300mm wire reels are easily accessed behind sturdy hinged side panels

wheels

Smooth rolling Polyurethane/rubber wheels

PRODUCT DETAILS

The AUTOPULSE 220-M1 is the MIG / MAG pulse generator with an integrated wire feeder for the car body. Equipped with a digital PFC (Power Factor Correction) it supplies pulsed welding quality comparable to three-phase products. Designed for the highest performance it features several synergic curves and exceptional arc quality. Versatile, it can carry out all types of welding: Steel, Aluminum, and Silicon bronze. Its intuitive interface and its high precision wire feed are ideal for car-body with the best welding quality even on thin sheets.

OPTIMIZED MIG/MAG SETTINGS

  • Welding processes: standard, pulse, pulse in pulse, cold pulse and manual.

  • Trigger modes: 2T, 4T, SPOT, DELAY and TACK function.

  • Compartment for reel Ø 300 mm.

SIMPLIFIED WELDING

  • Many synergic curves guaranteeing an outstanding weld for a large range of materials, wire sizes and gas.

  • Its full synergic mode determines automatically the optimal welding parameters which can be adjusted (wire speed, voltage, current, self).

MAXIMUM PRODUCTIVITY

  • 4 microprocessors to give four times the processing power.

  • Wheel drive system with 2 active drive rolls.

  • Suitable for wire reels of Ø 200 mm.

  • Automatic torch detection while pulling the trigger.

  • Compatible with torch Push-Pull (24V).

ERGONOMIC INTERFACE

  • New IHM simplified and centralized on car-body builder moving habits

  • Large color screen for easy control of the welding cycle set up.

  • 2 control knobs and 4 keys for easy and intuitive navigation of the menus.

  • Updatable machine and synergies via USB key.

  • Save up to 500 welding programs for repetitive tasks.

ROBUST AND MOBILE

  • Reinforced structure.

  • Frame supporting 1 bottle (10 m3) with low loading height.

PRODUCT INFORMATION DOWNLOADS

LEARN MORE

Let us work with you to find the best solutions for your auto body shop. Our representatives are trained on each system we offer and can explain the features and capabilities of each system to help you make the right decision.
