GYS Inverter PTI-G Plus
GYS INVERTER PTI-G - SPOT WELDER
PRODUCT DETAILS

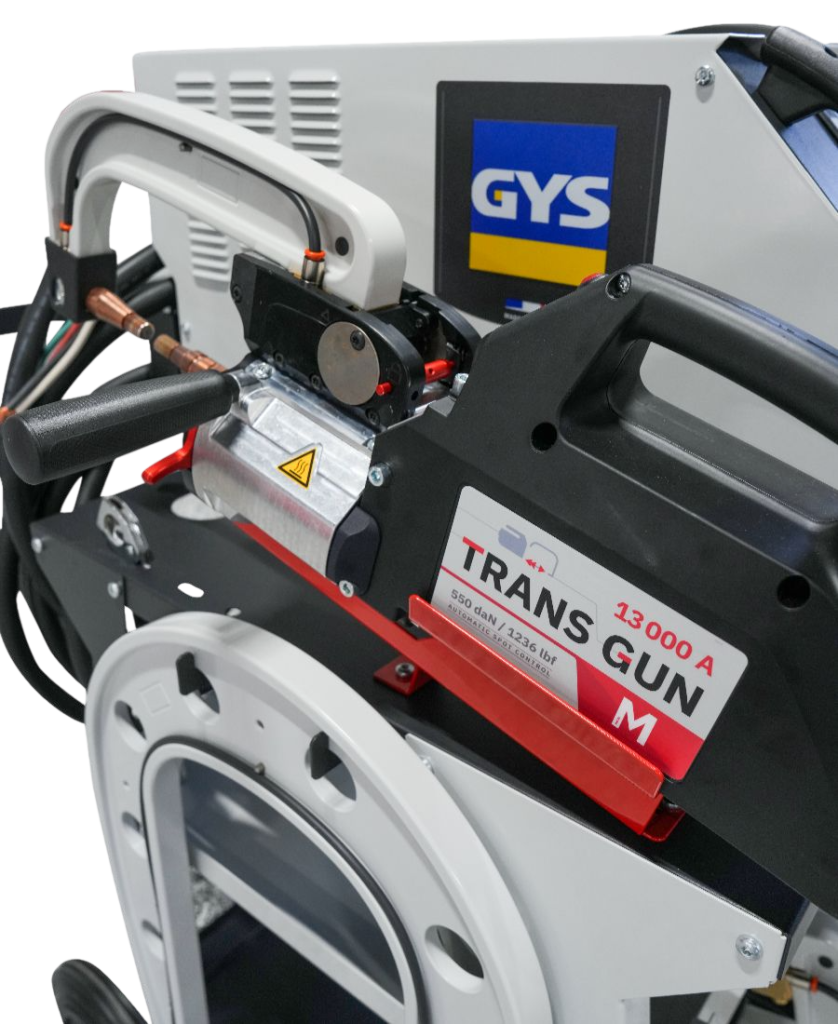

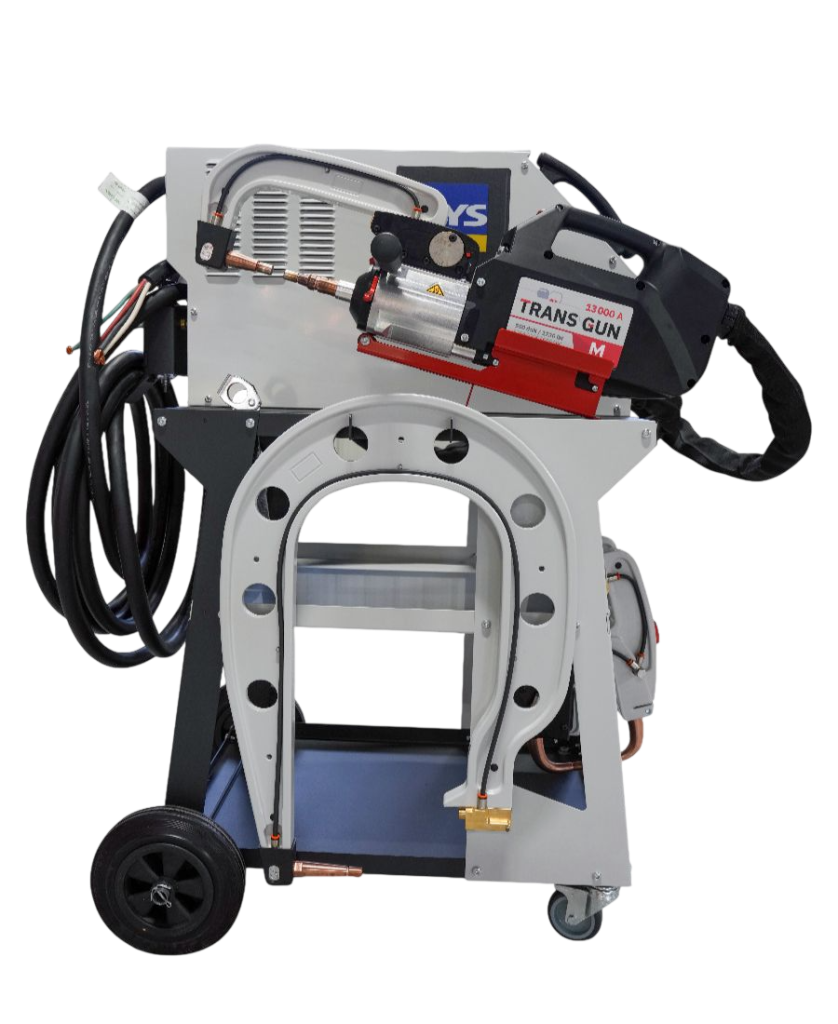

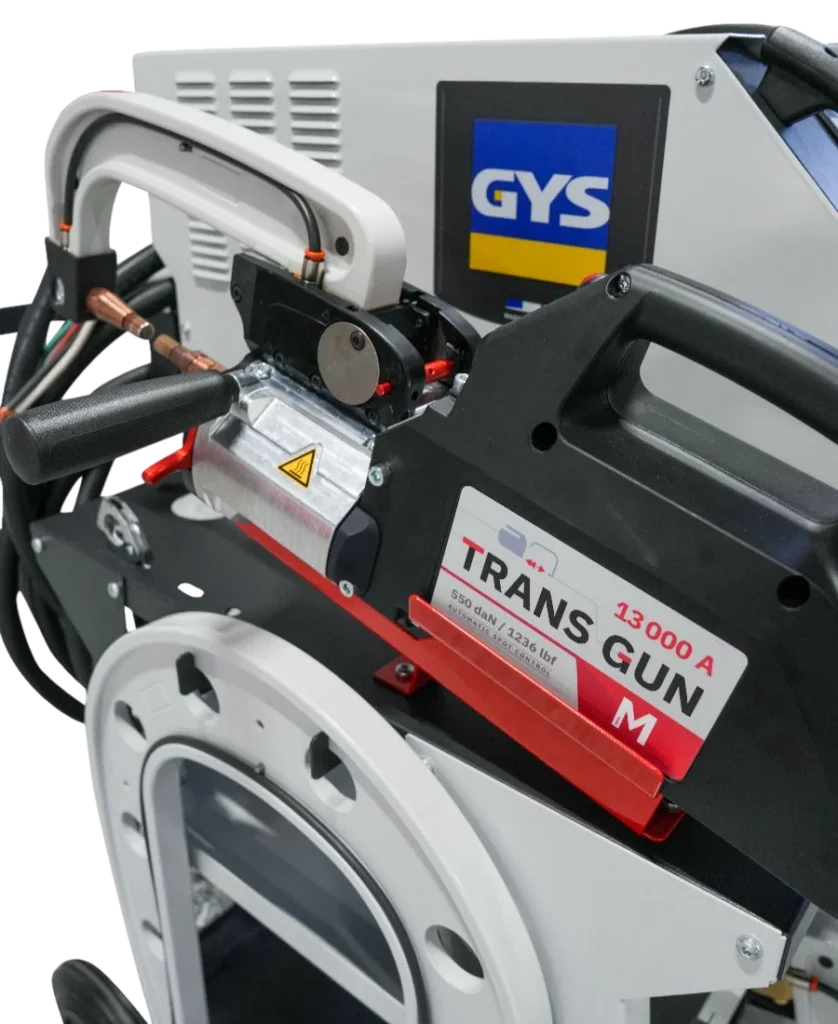

The GYSPOT PTI GENIUS Plus is the result of continuous innovation by GYS and is designed to revolutionize spot welding. It is fully automated and ultra ergonomic. The system combines a lightweight clamp with pneumatic over opening, simplified arm positioning, and an extended motorized overhanging balancing system. This design offers excellent mobility and accessibility in automotive repair environments.
The patented cable locking system allows quick clamp detachment. A large 7 inch color interface provides clear display and intuitive navigation, optimizing configuration and daily operation.
Key Benefits - High Performance
- High duty cycle with maximum 14,500 A welding current
- Suitable for welding all types of steel on modern vehicles including HSS, VHSS, UHSS, and Boron
- Liquid cooled system with 7.9 US gallon capacity for maximum productivity
- High speed operation up to 15 spots per minute
- Clamping force up to 600 daN at 116 psi to meet OEM requirements
- Clamp with integrated transformer to reduce power consumption
- 50 A fuse
Technical Specifications
- Power Supply: Three phase, 50/60 Hz
- Voltage: 200 to 240 V
- Fuse Type: D type
- Welding Current RMS: 12,500 to 14,500 A
- Welding Capacity: Up to 15 spots per minute
-
Arm Reach Options:
- 0.1 + 0.1 + 0.1 inch
- 0.06 + 0.12 inch -
Cable Lengths:
- Liquid cooled cable: 19.7 ft
- Optional cable: 5.9 ft
- Optional cable: 3.3 ft
- Total reach: 26 ft
- Coolant Capacity: 7.9 US gallons
- Dimensions: 28 x 35 x 78 inches
- Weight: 220 lbs
GYS Inverter PTI-G Plus
Adjustable Balancing System
- Offset up to 55 inches from the power source for improved range
- Motorized boom arm height adjustment to accommodate vehicle dimensions
- Patented cable lock system for easy clamp release
- Counterbalance system to relieve clamp weight away from the working area
- 90 degree folding boom arm to optimize space
- Rubber protectors on movable parts
Easy to Use
- Automatic mode where the intelligent clamp detects correct welding parameters
- Pneumatic over opening with 3 inch clearance between caps
- Large 7 inch color screen with improved user interface
- Designed for ease of use by automotive repair professionals
- Spot counter to determine cap service life
Ergonomics
- Reinforced, easy to maneuver trolley with 7.9 US gallon coolant tank

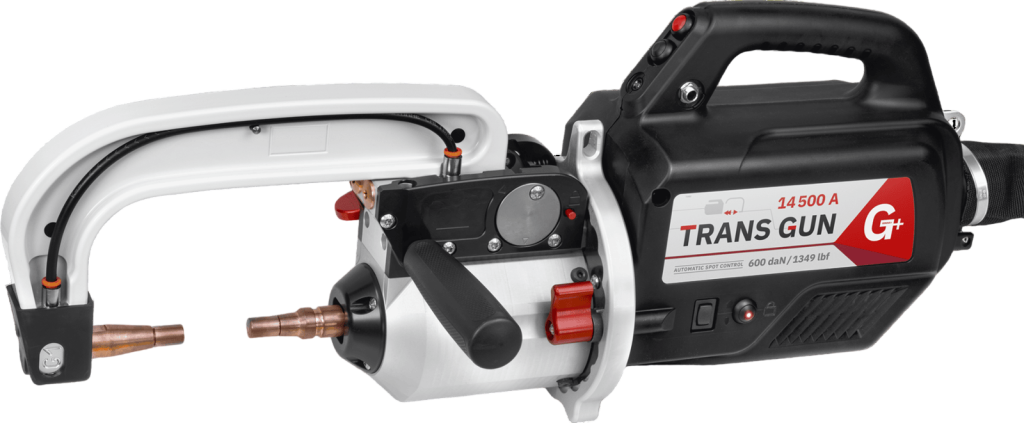

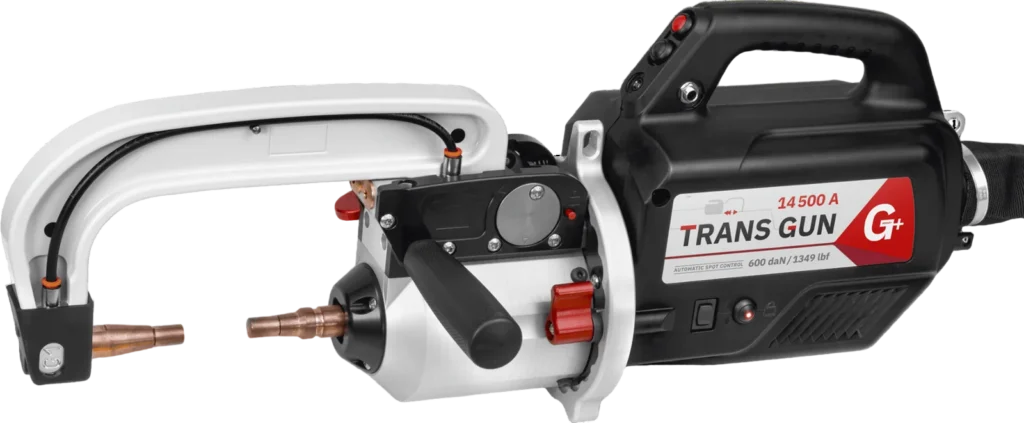

- Compact clamp weighing approximately 27.3 lbs with 360 degree rotation using a built in gyroscope
- 19 ft interconnection cable between clamp and machine for improved vehicle access
- Interconnection cable can be disconnected for easier clamp maintenance
- Front wheel expander for greater stability
- Integrated 9 arm support
Premium G Arms
- Quick and easy welding arm changes with no tools required
- Brass clamp holder and arm foot plate for optimal electrical contact
- Automatic connection of coolant terminals
- Wide range of optional arms for full vehicle access
Optimized Traceability & Accessories
- Spot weld traceability with data export via USB
- Complete machine updates via USB stick
- Quick Fix single point gun kit (Ref. 082823)
- G arms and consumables
