GYS Autopulse 320 – T3

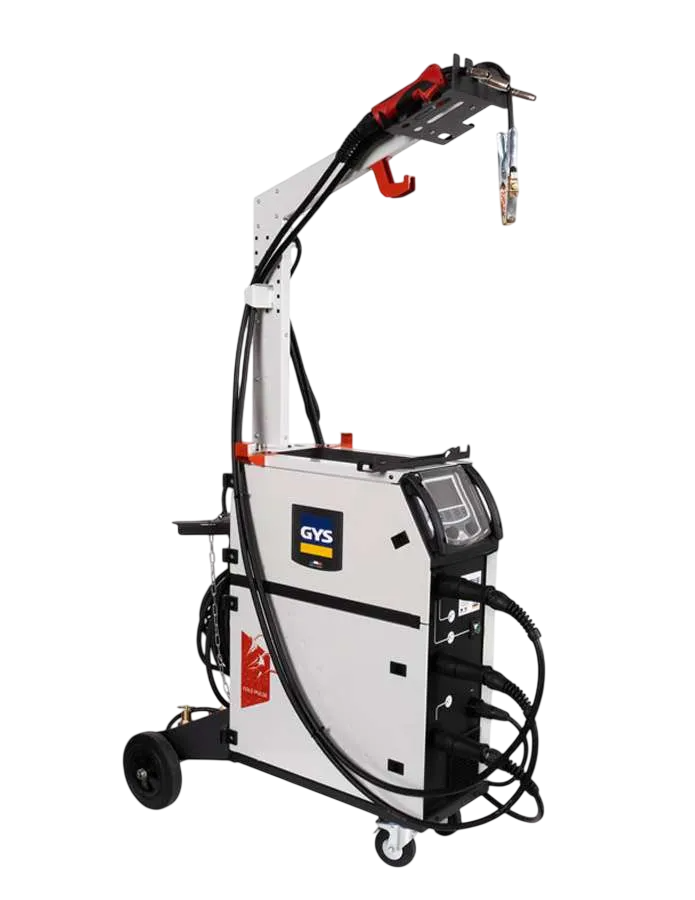

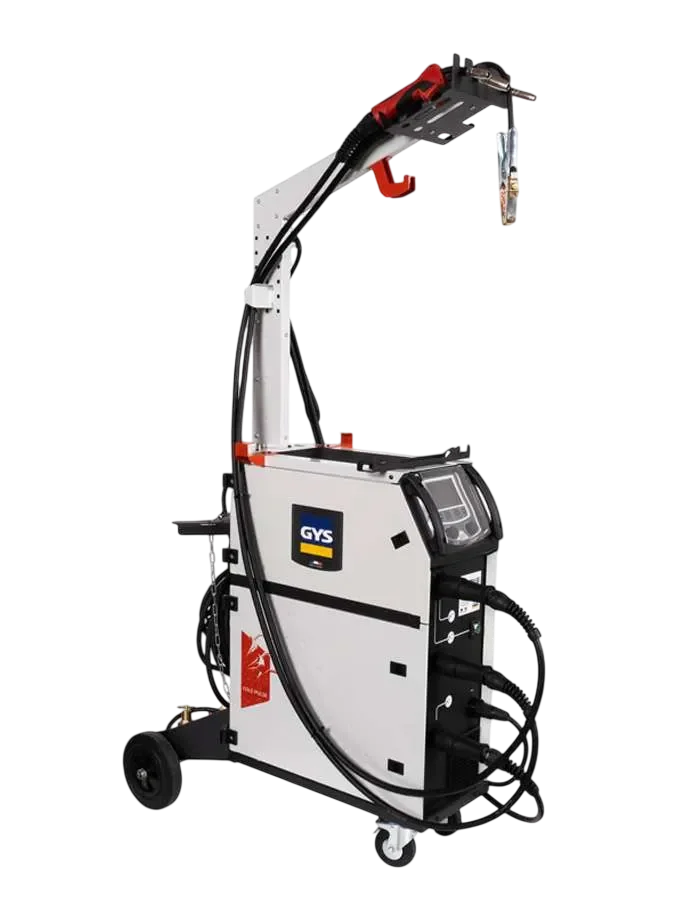

GYS Autopulse 320 - T3 - MIG MAG WELDER
PRODUCT DETAILS
AUTOPULSE 320-T3 is a digital MIG/MAG double pulse generator with 3 integrated wire feeders. It is an extremely advanced machine with 68 synergic curves providing exceptional arc quality. Versatile, it will hold 3 different torches to weld steel, aluminum, and silicon bronze.
The user-friendly interface and the very precise wire feed make the quality of the weld on very thin sheets outstanding.
- Booms organize and protect torches and torch whips, hooks keep welding helmets close at hand
- 2 dedicated torches, integrated wire feeders, and optional spool gun
- By selecting Synergic Mode, the type of wire, wire size, and welding current, the welder determines the optimum wire speed
- Ground cable with 200A clamp
- Easy to roll cabinet with rubber wheels and locking casters keeps welder where you need it during repair
PRODUCT SPECIFICATIONS
MAXIMUM PRODUCTIVTY
- 4 microprocessors increase the calculation speed and general machine efficiency.
- Very high arc voltage guarantee an easy arcing and an exceptional arc performance on all types of metals.

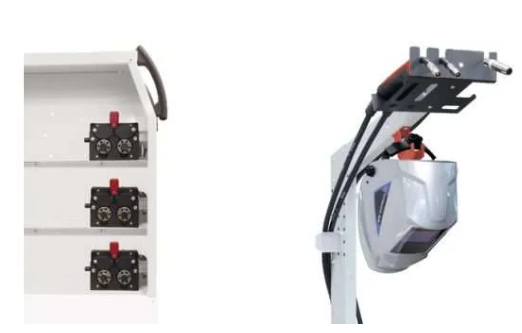

- 3 electronically regulated wire feeders fitted with 4 drive rolls each.
- Will hold up to 3 wire reels of 200mm diameter.
- Automatic detection of the torches when the trigger is pressed.
- Over hanging torch support (x3) and welding helmet.
- Compatible with Push Pull torches (24 V).
- Compatible with Spool Guns and ideal for aluminium soft wire (AlSi5 / AlSi12).
MIG/MAG OPTIMIZED SETTINGS
- Welding processes: Standard, Pulse, Pulse in Pulse, and Manual.
- Trigger activation modes: 2T, 4T, SPOT, DELAY and TACK function.
- Precise control over the welding cycle: CreepSpeed, Softstart, Hotstart, Upslope,
- Downslope, Crater Filler, Postgaz, etc.
MIG/MAG welding
- steel wire Ø 0.6 / 1.0 mm
- stainless steel wire Ø 0.8 / 1.0 mm
- aluminium wire Ø 0.8 / 1.0 / 1.2 mm
SIMPLIFIED WELDING
- The 57 synergic curves guarantee an outstanding weld using a large range of materials, wire sizes, and gases.
- The integral synergic mode determines automatically the best welding settings but also allows the user to adjust them (wire feed speed, voltage, current, self).
Brazing mode
- wire CuSi and CuAl Ø 0.8 / 1.0 mm
GYS Autopulse 320 - T3 - MIG MAG WELDER

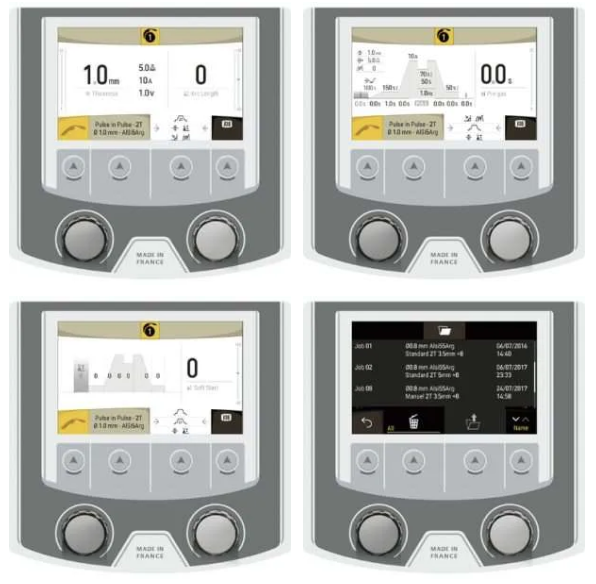

USER FRIENDLY INTERFACE
- New and simplified interface designed specifically for use by bodyshop staff.
- XL Color Screen to set and control the welding cycle very precisely.
- Easily navigate through the different menus with 2 scroll wheels and 4 buttons
- USB stick allows for easier system updates
- Storage available for up to 500 welding programs for repetitive jobs.
