Autopulse 220 – P3

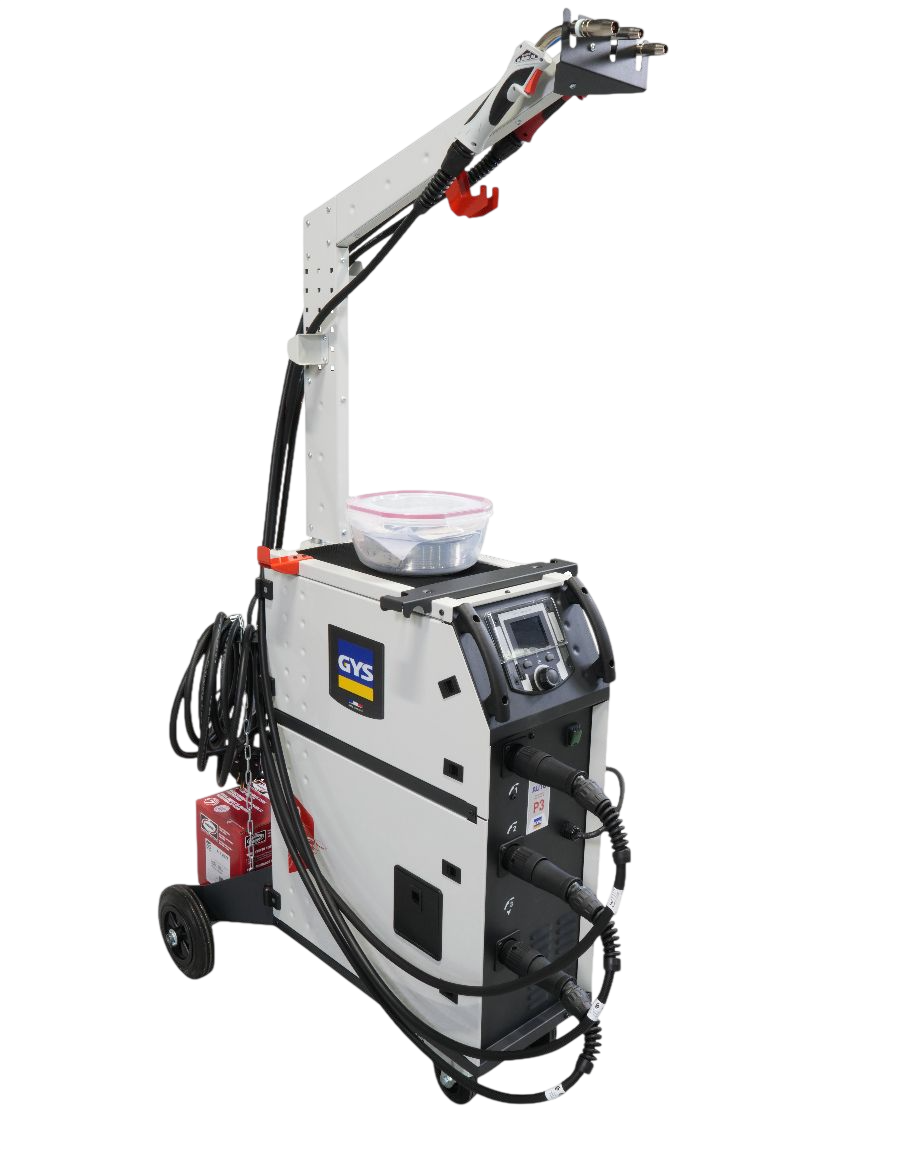

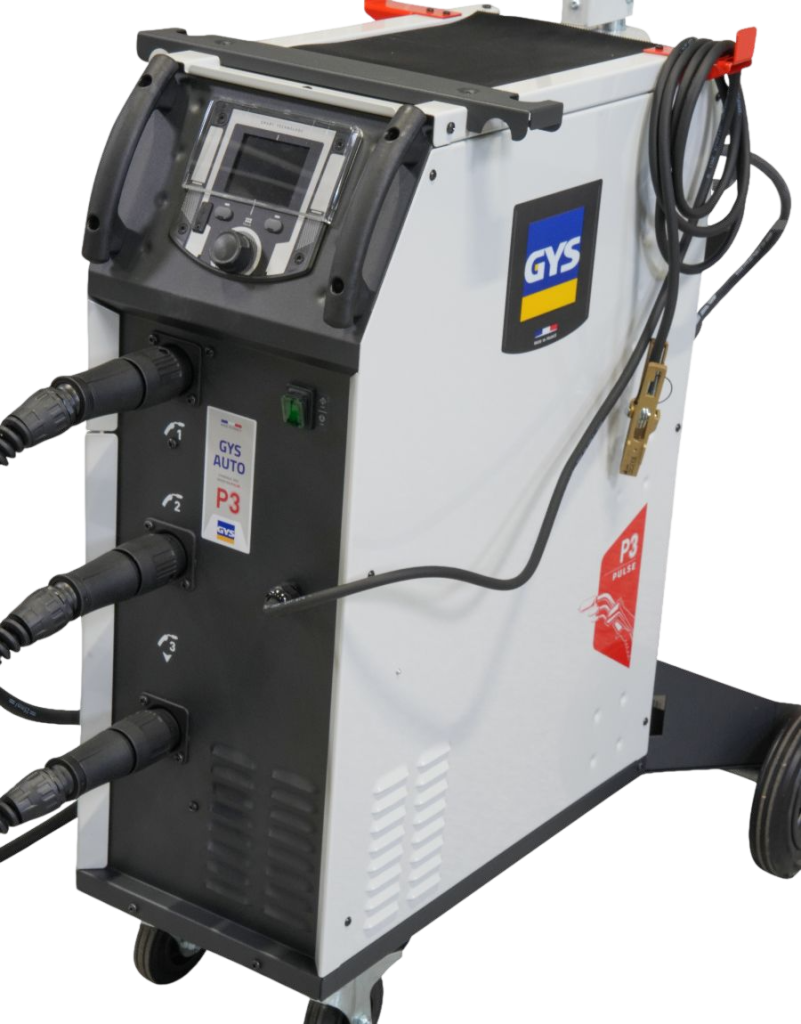

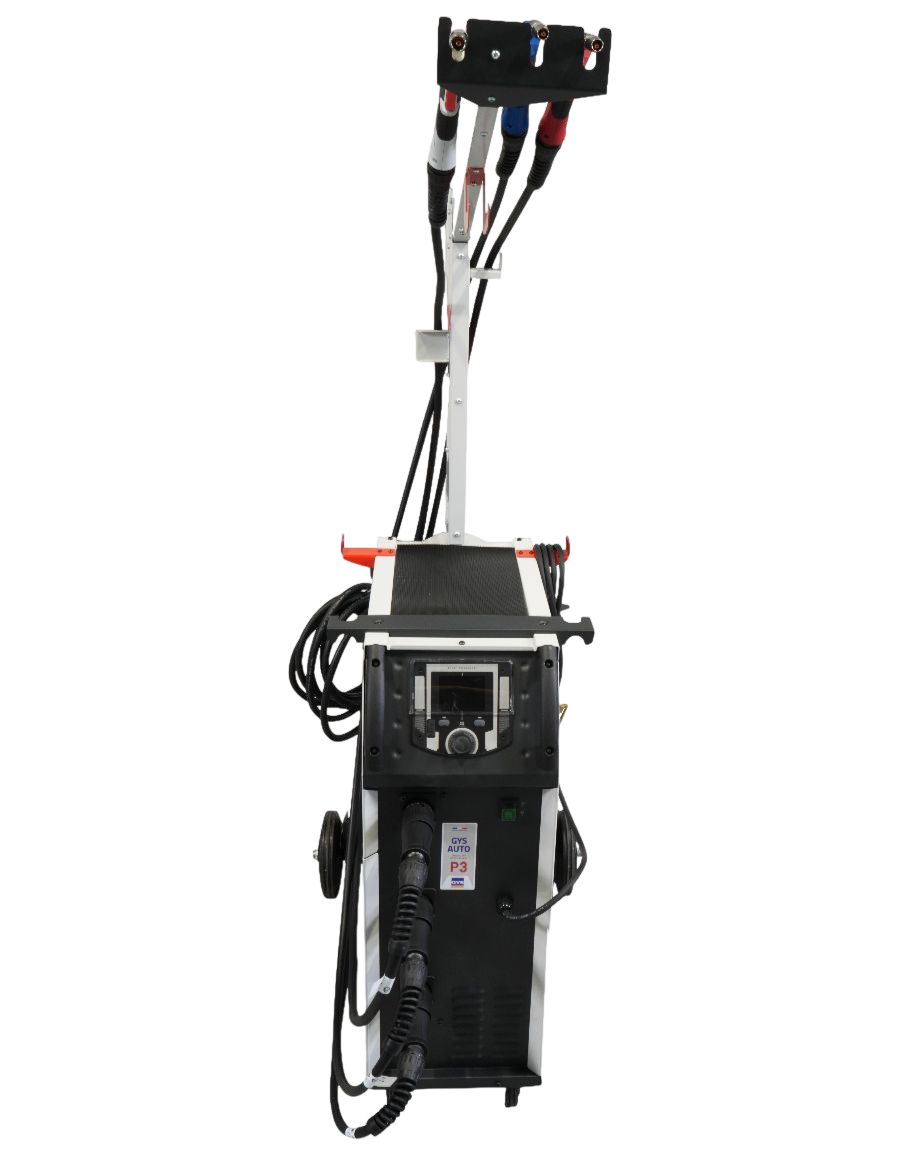

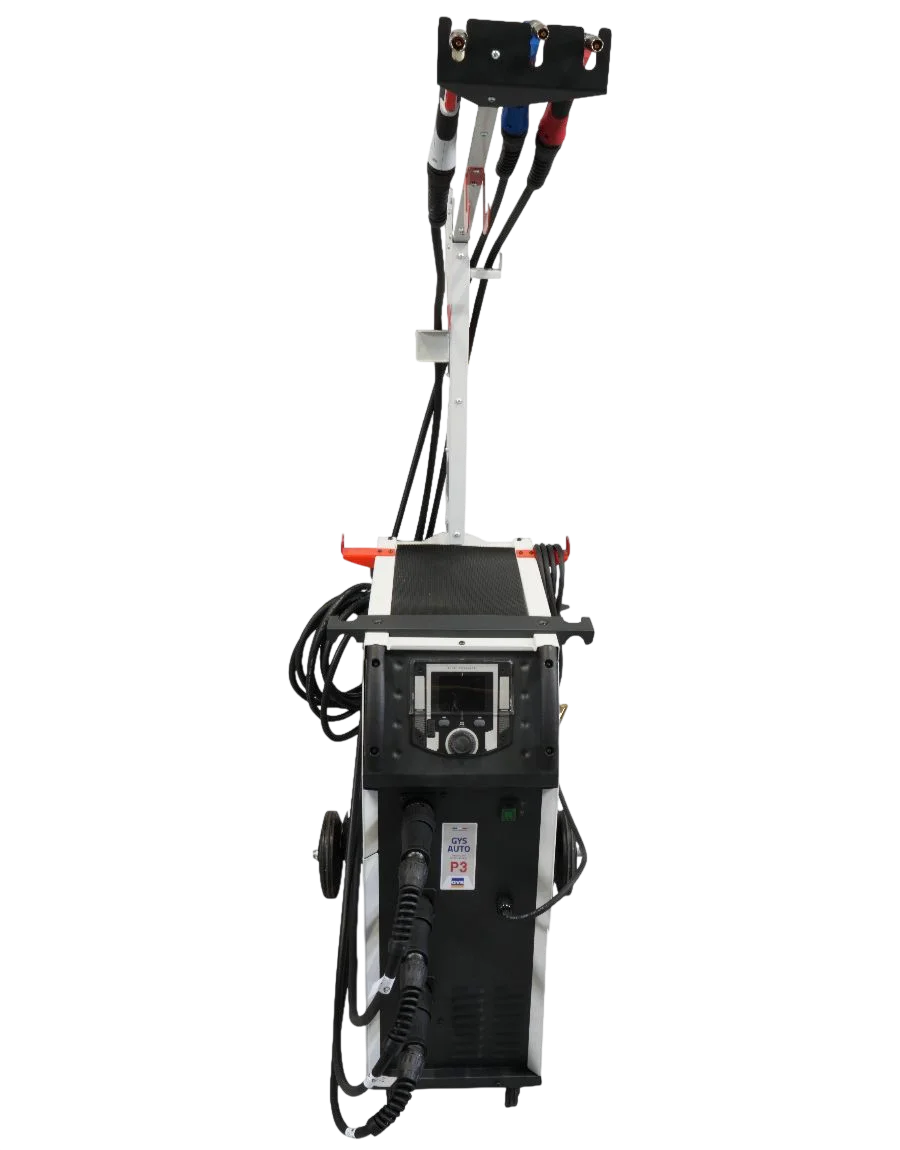

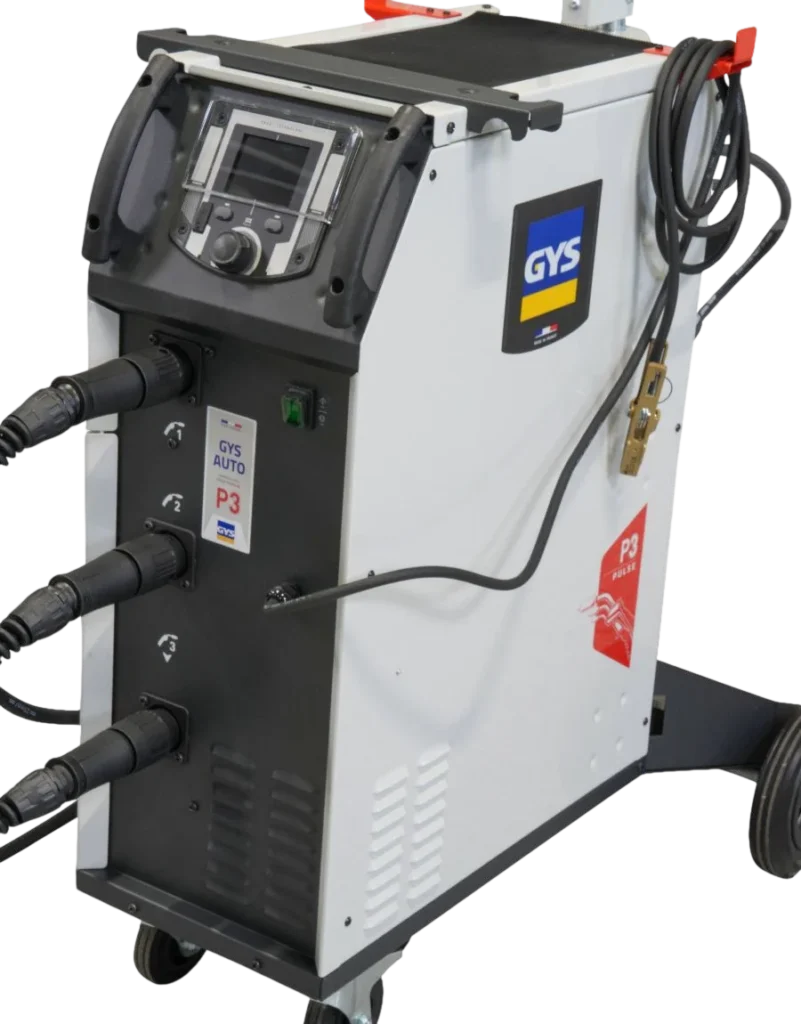

P3 GYS AUTO (PFC) - MIG MAG Pulse Inverter
PRODUCT DETAILS
The P3 GYS AUTO is a 220 A single phase synergic MIG MAG welding unit equipped with three integrated wire feeders, specifically designed for bodywork specialists. It is capable of welding all types of aluminum components with zero spatter. Featuring a highly intuitive color interface, the unit can weld steel, aluminum, and brazing alloys including CuSi3 and CuAl8, even on thin gauge materials down to 1.0 mm and 1.2 mm, using pulse technology.
Intelligent Features
- Specific synergies for Steel, AlMg, AlSi, CrNi, and CuSi
- After entering three parameters wire diameter, material gas, and workpiece thickness, the machine automatically determines optimal welding conditions
- PFC technology with Power Factor Correction accommodates input voltages from 185 V to 265 V
- New intuitive multilingual 3.5 inch HMI
- Complete machine and synergy updates via USB stick
- Job memory for up to 200 welding programs
- Portability function allows user jobs & machine configuration to be saved and transferred via USB
- On demand ventilation system reduces dust ingress
Other Information
Ergonomics
- Reinforced wheels for stability and maneuverability
- Support for two gas cylinders up to 2 x 43 m3 (20 L)
- IP23S rated for use in difficult environments
- Integrated storage compartment
- Welding Capacity: Up to 15 spots per minute
Accessories (Optional)
- MB25 torch consumables kit (Ref. 041233)
Included Equipment
-
Supplied with Three Torches:
-Aluminum torch: 3 m, Ø 1.0 and 1.2 mm
- Steel torch: 3 m, Ø 0.6 and 0.8 mm
- CuSi torch: 3 m, Ø 1.0 mm
- Fixed earth clamp cable: 3.5 m
- Support arm -
Supplied with Three Wire Reels:
- AluMg2 Ø 1.2 mm, 2 kg (Ref. 086517)
- Steel SG2 Ø 0.8 mm, 5 kg (Ref. 086128)
- CuSi3 Ø 0.8 mm, 5 kg (Ref. 086647)
User Interface Highlights
- Ball and socket joints on both ends of the torch for improved maneuverability
- Easy navigation even when wearing welding gloves
- Selection of main parameter displayed on screen such as wire speed or current
- Quick access to the most commonly used welding parameters
P3 GYS AUTO (PFC) - MIG MAG Pulse Inverter
MIG MAG Welding
-
MIG MAG Smooth and Pulse:
- Steel and stainless steel wire: Ø 0.6 to 1.2 mm
- Aluminum wire: Ø 0.8 to 1.2 mm
- CuSi and CuAl wire: Ø 0.8 and 1.0 mm - Overhead boom adjusts overhead from 5' to over 8'
Premium Welding Performance
- Digital arc control with instant ignition
- Excellent arc stability to minimize spatter
- Four roller wire feeder with digital encoder for precise wire feed
- Three MIG MAG welding modes: Standard Dynamic, Pulse, and Manual
Display and Welding Modes
-
Two Display Modes:
- Easy mode for streamlined operation and optimal weld quality
- Expert mode for advanced users with full parameter control -
Trigger Modes:
- 2T mode: Welding occurs while trigger is held down and stops when released
- 4T mode: Welding continues after trigger release for continuous operation and stops when trigger is pressed and released again
