Airfix/ Ergo Lift Door Tool

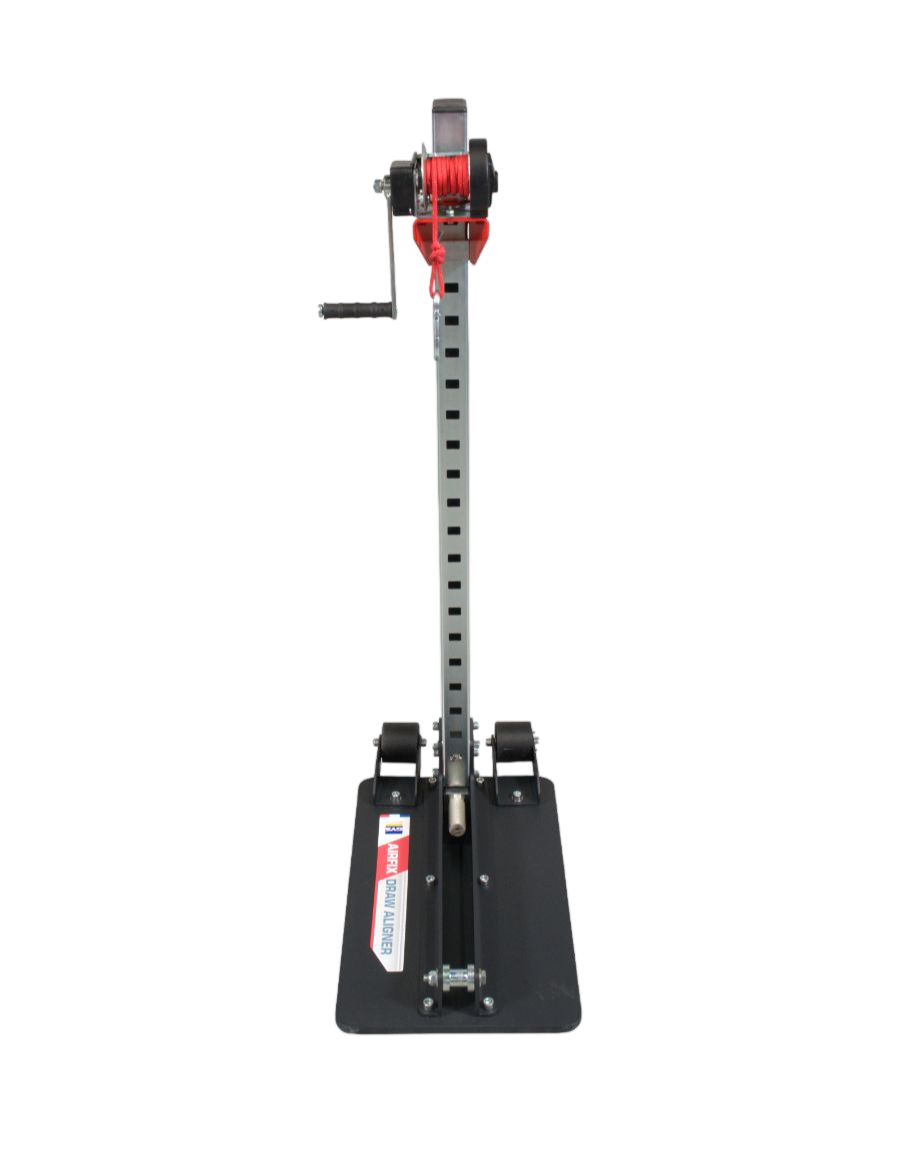

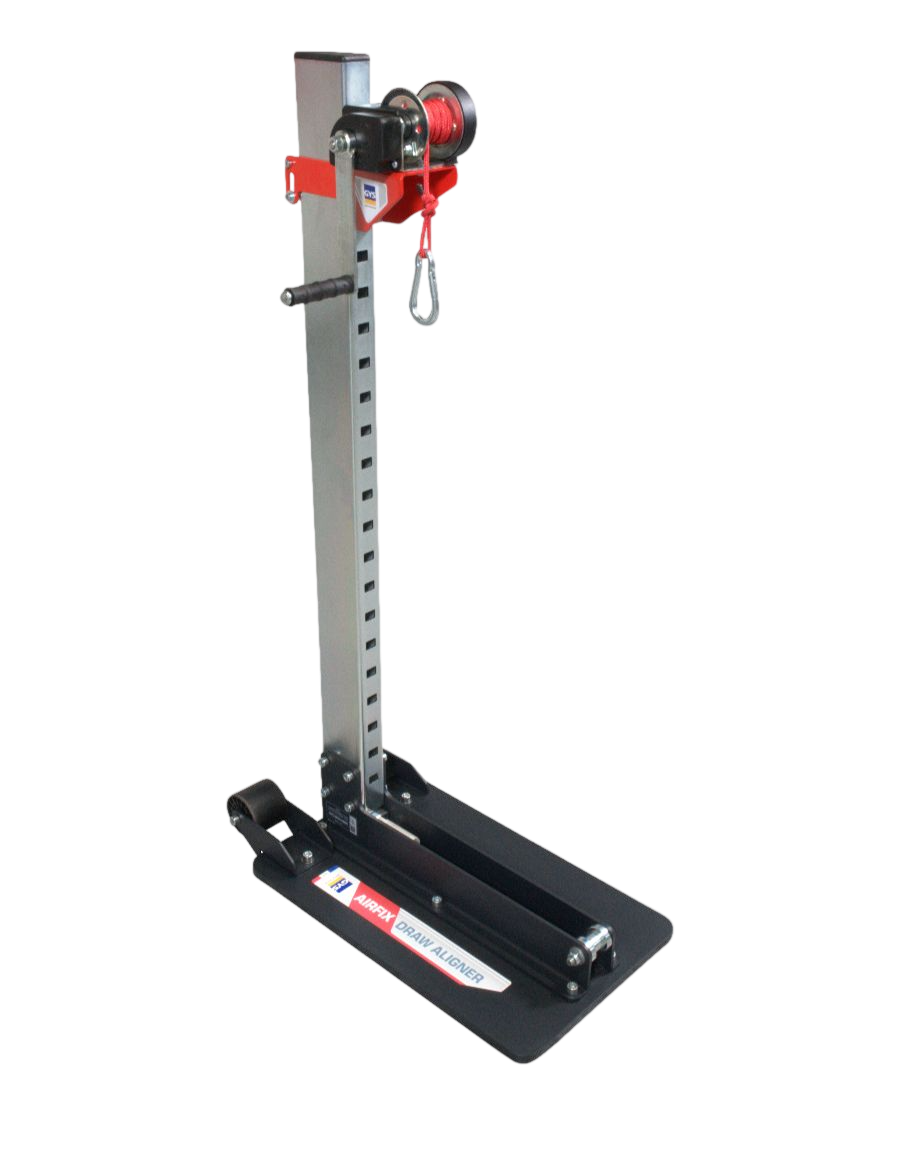

GYS AIRFIX DRAW ALIGNER - DENT REMOVAL
PRODUCT DETAILS
The AIRFIX DRAW ALIGNER is an essential tool for auto body specialists performing dent removal operations. Its patented design features a non glued, recessed seal that can be replaced quickly, minimizing downtime. Four integrated vacuum pads prevent gasket slippage during pulling, increasing stability and durability. Built for reliability and performance, the AIRFIX DRAW ALIGNER is recognized as one of the most dependable dent pulling systems available.
Powerful and Effective Pulling
- Pulling capacity up to 770 lbs across the full height of the unit
- Maximum pulling height of 52 inches
- Crank winch with 6 mm wire rope rated at 3,300 lbs tensile strength
- Sliding system allows pulling height adjustment in seconds without tools
- Angled gear design facilitates downward pulling

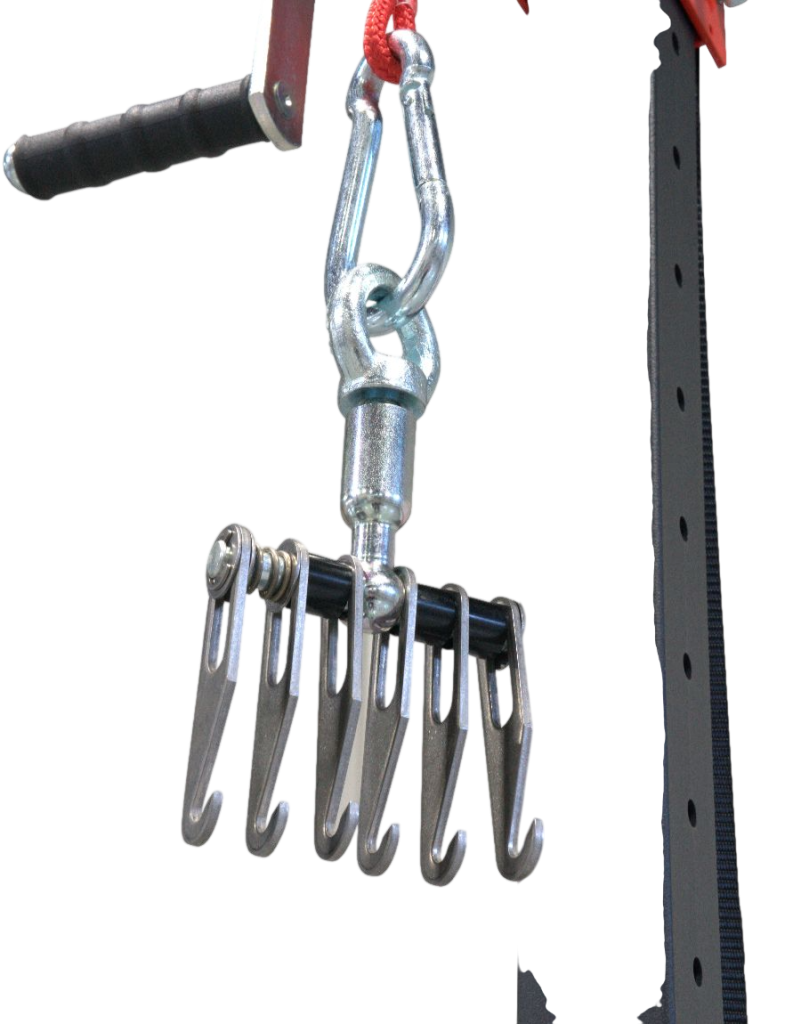

- Supplied with a six tooth claw
Innovative and Patented Design
- Suction cup plate equipped with four rubber pads to absorb shearing forces during pulling
- Surrounding seal recessed without glue
- Seal and pads are easily replaceable
- Patent pending design
Other Information
Ergonomic Design
- Lightweight construction at approximately 68 lbs
- Easy mobility with two integrated wheels
- Low noise operation using a high performance silencer
Operation
- Position the unit
- Connect to compressed air
- Pull
Dimensions & Physical Details
- Overall height: 50 inches
- Base length: 24 inches
- Suction plate width: 24 inches
- Suction plate height: 14.5 inches
-
Seal dimensions:
- Length: 47 inches
- Width: 16 inches
- Height: 3.5 inches
Spare Parts
- Wire rope, 78 inches, Reference 079588
- Seal for plate, 68 inches, Reference 079571

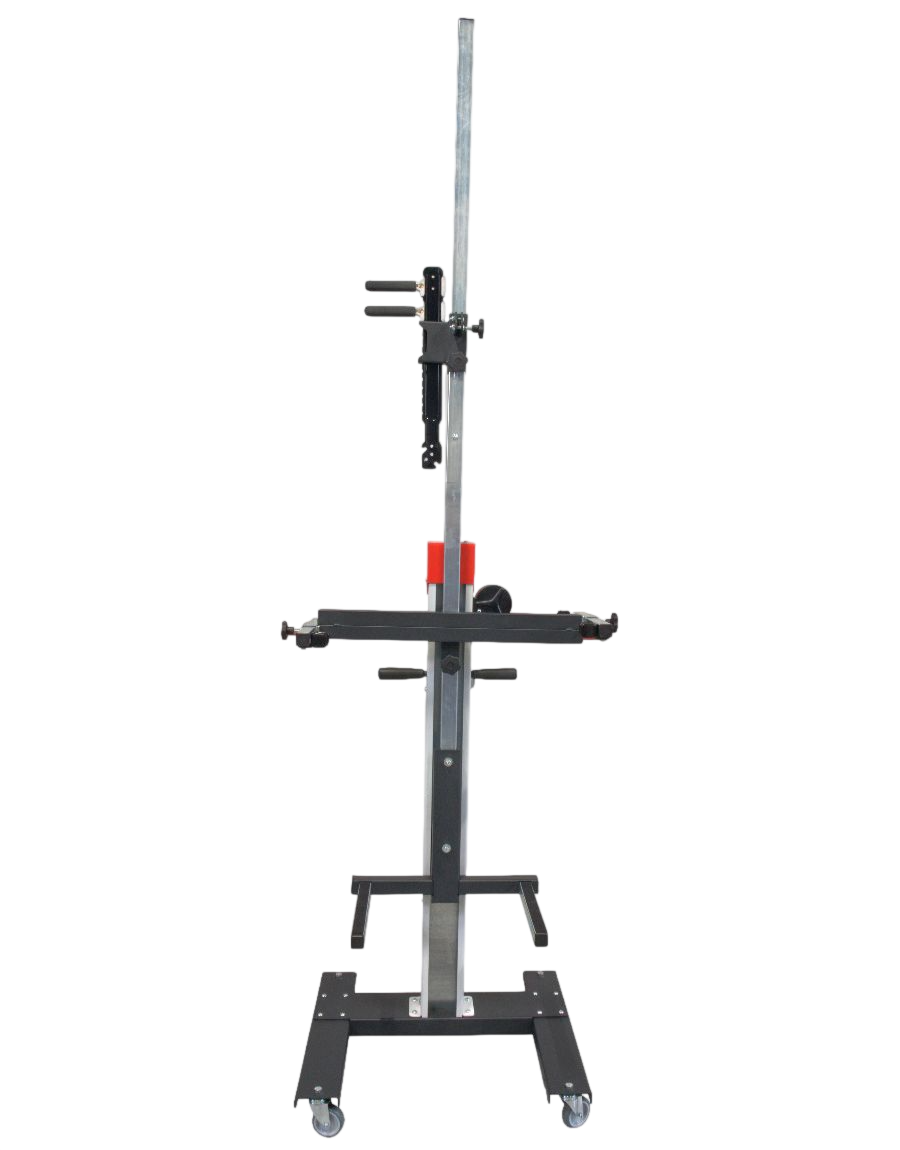

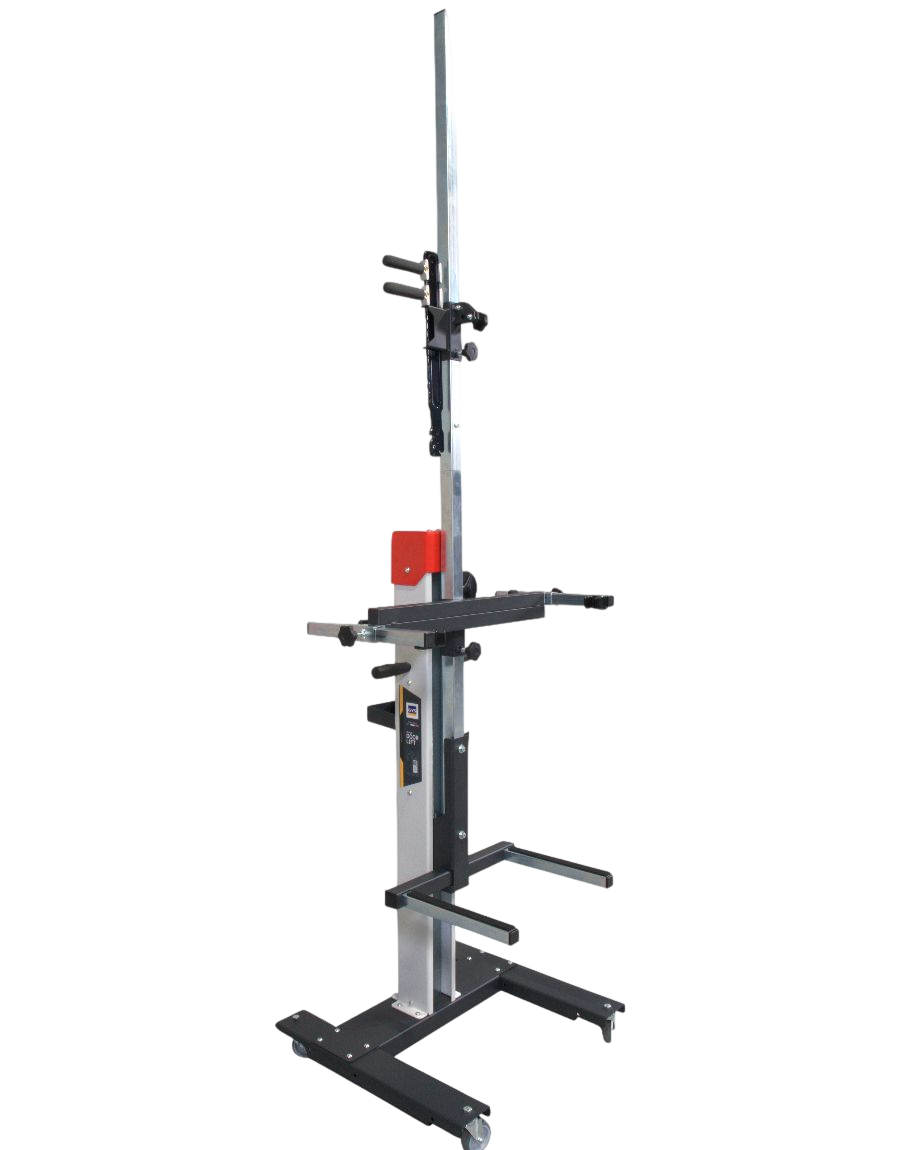

ERGO DOOR LIFT
Technical Specifications
- Safe working load: 50 kg
- Maximum door thickness: 30.5 cm
- Maximum width of wide or sliding doors: 173 cm with optional extension
- Base height: 12 cm from ground level
- Unit weight: 40 kg
The ERGO DOOR LIFT is a labor saving, fully autonomous system designed for installing and removing heavy vehicle doors safely and efficiently. It allows a single technician to handle door removal and installation tasks that typically require two people, reducing physical strain while improving precision and safety in the workshop.
Universal Compatibility
- Lifts doors up to 206 cm in height
- Compatible with large sliding side doors on vans when used with the optional extension bar (Ref. 082700)
Door Protection
- Rubber bumpers on the top and bottom arms stabilize the door
- Protects vehicle paintwork during removal and installation
Ease of Use
- Crank mechanism allows precise door positioning
- Quick release catches secure the door without bracing
- Adjustments can be made easily during installation
Maneuverability
- Four swivel wheels for smooth movement
- Two wheels equipped with brakes for secure positioning close to the vehicle
Ergonomic Benefits
- Reduces physical strain during door handling
- Helps lower the risk of musculoskeletal disorders and back pain
- Support assisted handling improves workplace safety
